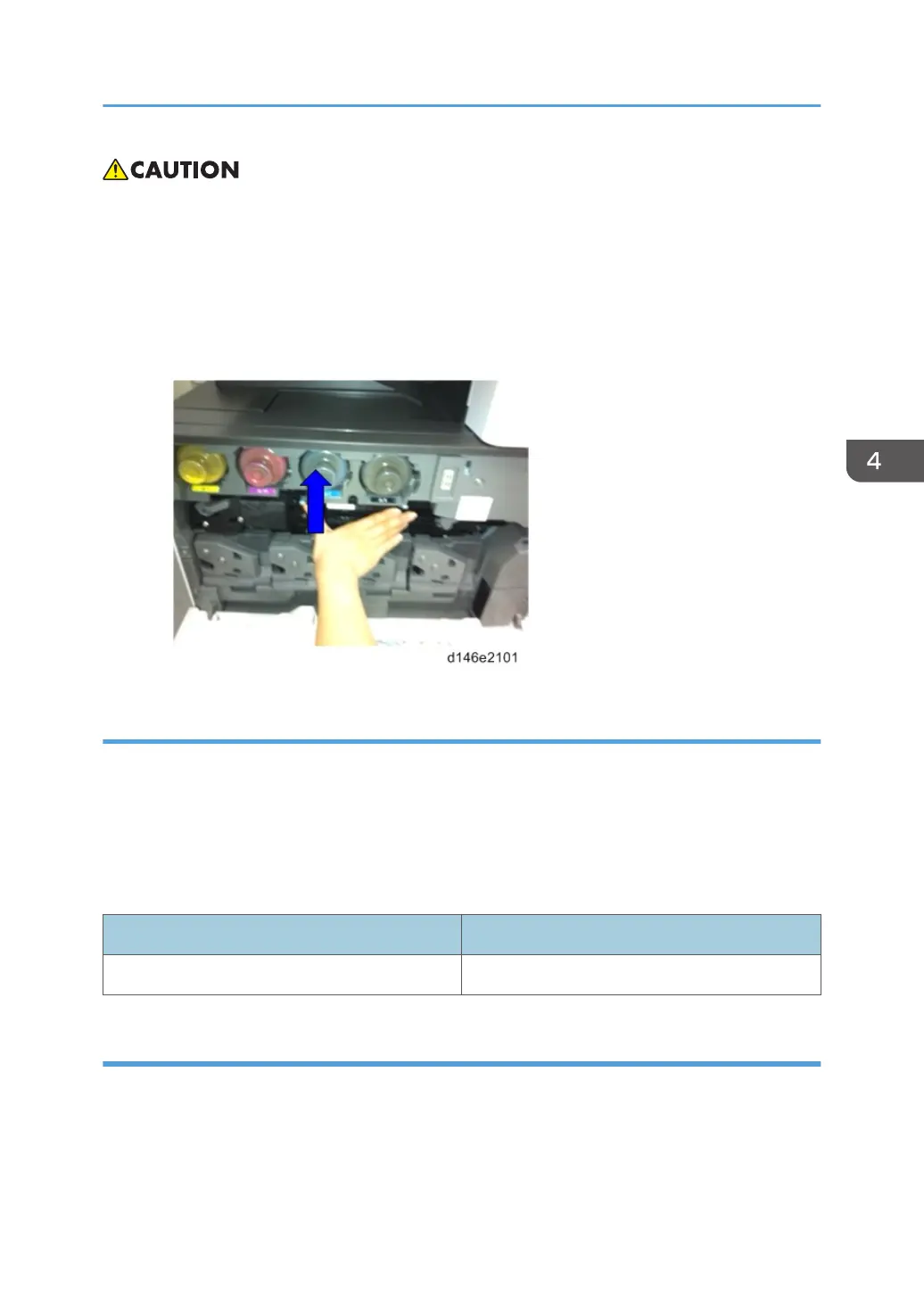

• Precautions when attaching the image transfer belt unit:
• Slowly push the unit until it is inserted all the way, and then give a final strong push one more
time. Then lock the ITB lock lever and ITB contact lever.
If the ITB contact lever is locked with the image transfer belt unit not fully inserted into the
machine, the paper transfer roller is not set in the correct position when the paper transfer
roller unit is closed. This causes shadows on the image or paper jam, and the paper transfer
roller unit may not open.
What to Do before Replacing the Image Transfer Belt
Before replacing the Image Transfer Belt unit, set SP3-701-093 to "1" and switch the power OFF.
Then replace the Image Transfer Belt unit and switch the power ON.
SP3-701 (Manual New Unit Set)
This SP is the new unit detection flag.
0: new unit detection flag OFF, 1: new unit detection flag ON
Item SP
Image Transfer Belt Unit SP3-701-093
Replacement
1. Open the front cover.
Image Transfer Unit
475
