Proximity Sensor (Human Detection Sensor) Board

1. Front upper cover (page 413)

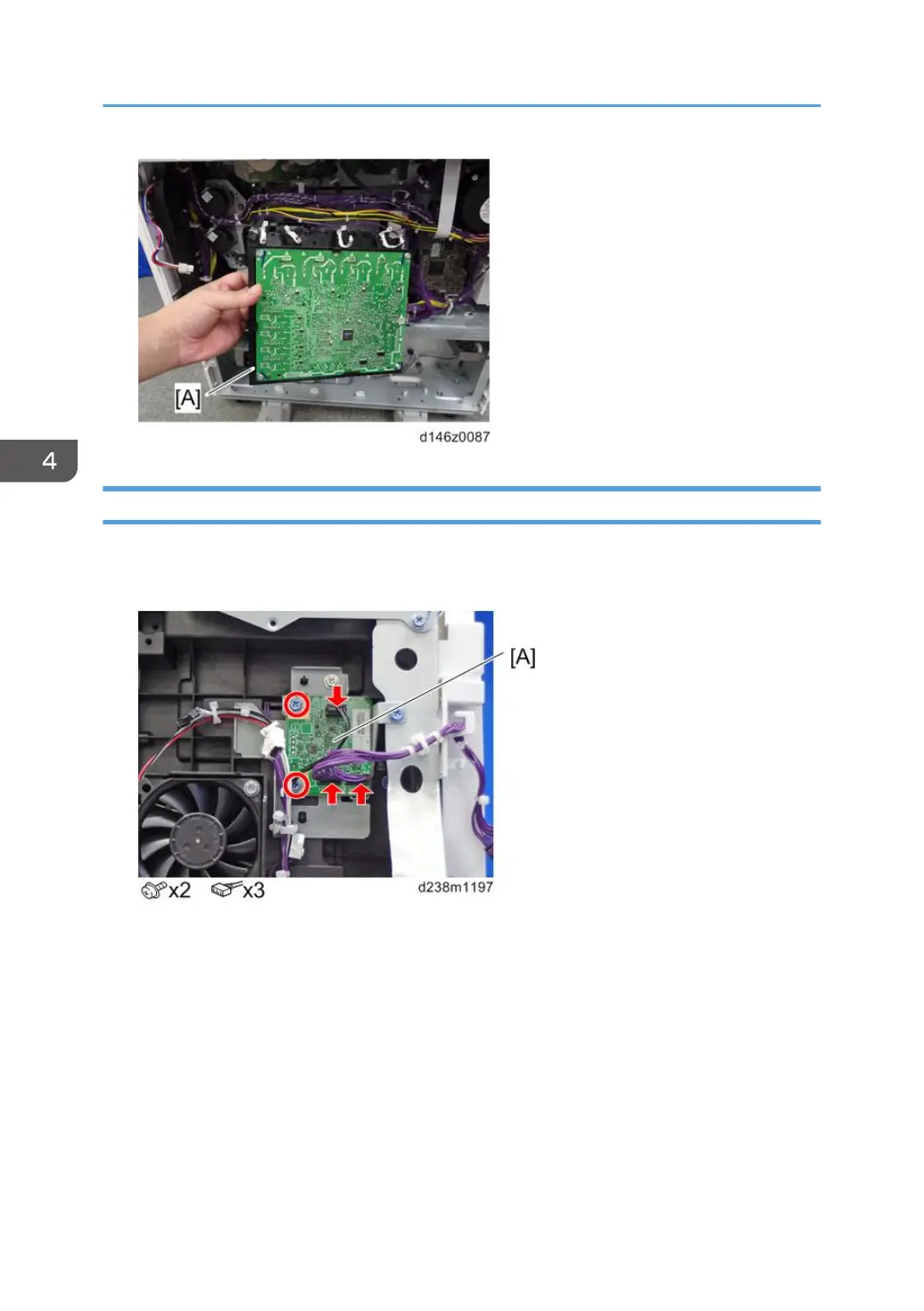

2. Proximity sensor (Human detection sensor) board [A].

4. Replacement and Adjustment

624
