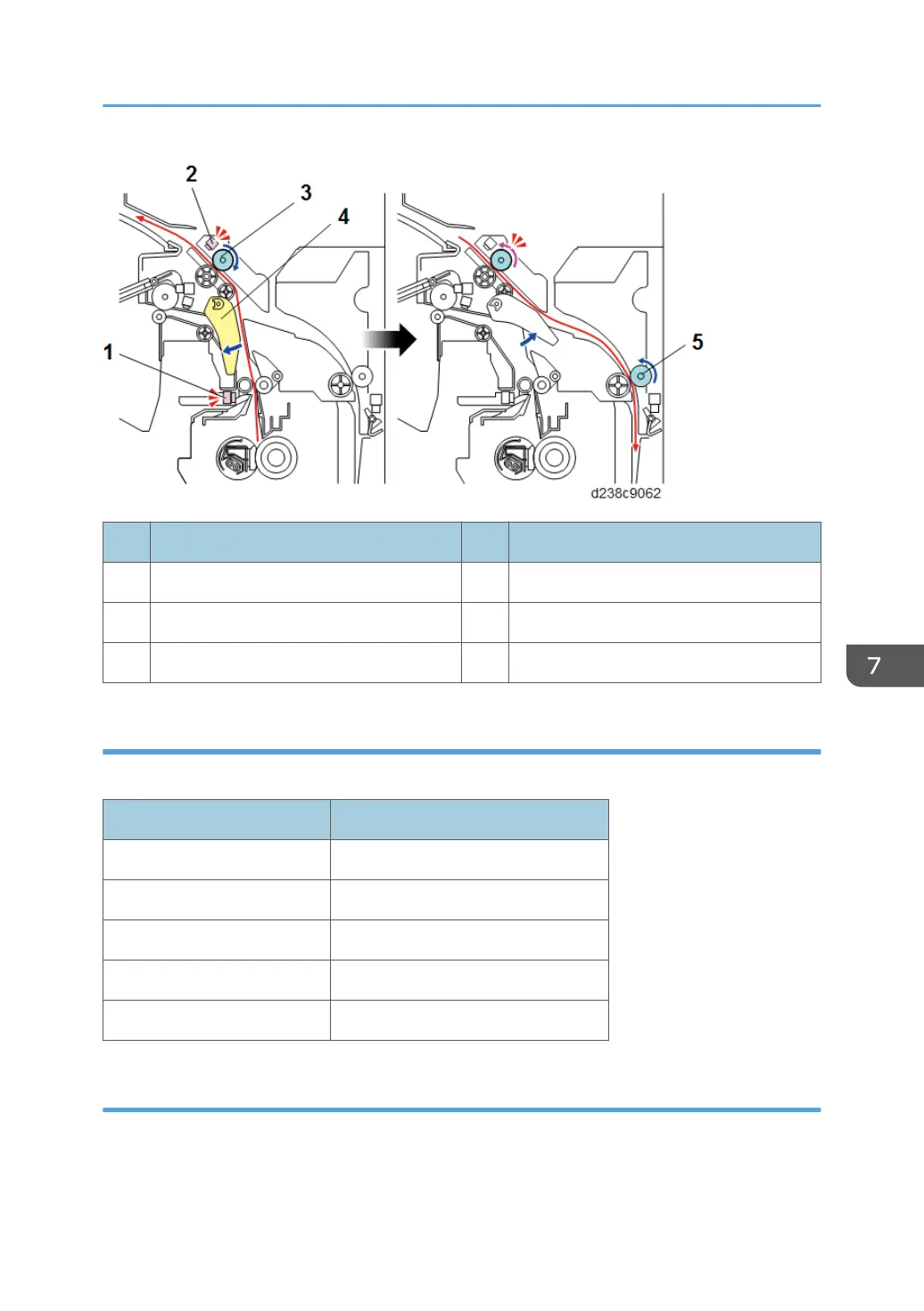

No. Description No. Description
1 Fusing exit sensor 4 Paper exit junction gate
2 Reverse sensor 5 Duplex entrance roller 1
3 Reverse roller
Duplex Drive
The rollers are driven by the following motors:
Rollers Drive sources
Reverse roller Reverse motor
Duplex entrance roller 1 Duplex entrance motor
Duplex entrance roller 2 Duplex entrance motor
Duplex transport roller Bypass/ Duplex motor
Duplex exit roller Bypass/ Duplex motor
Interleave Mechanism
The duplex unit, in order to reduce the overall duplex copying time, performs interleaving.
Paper exit from main machine
Paper Feed/ Transport Section
1175
