Paper Dust Collection Unit

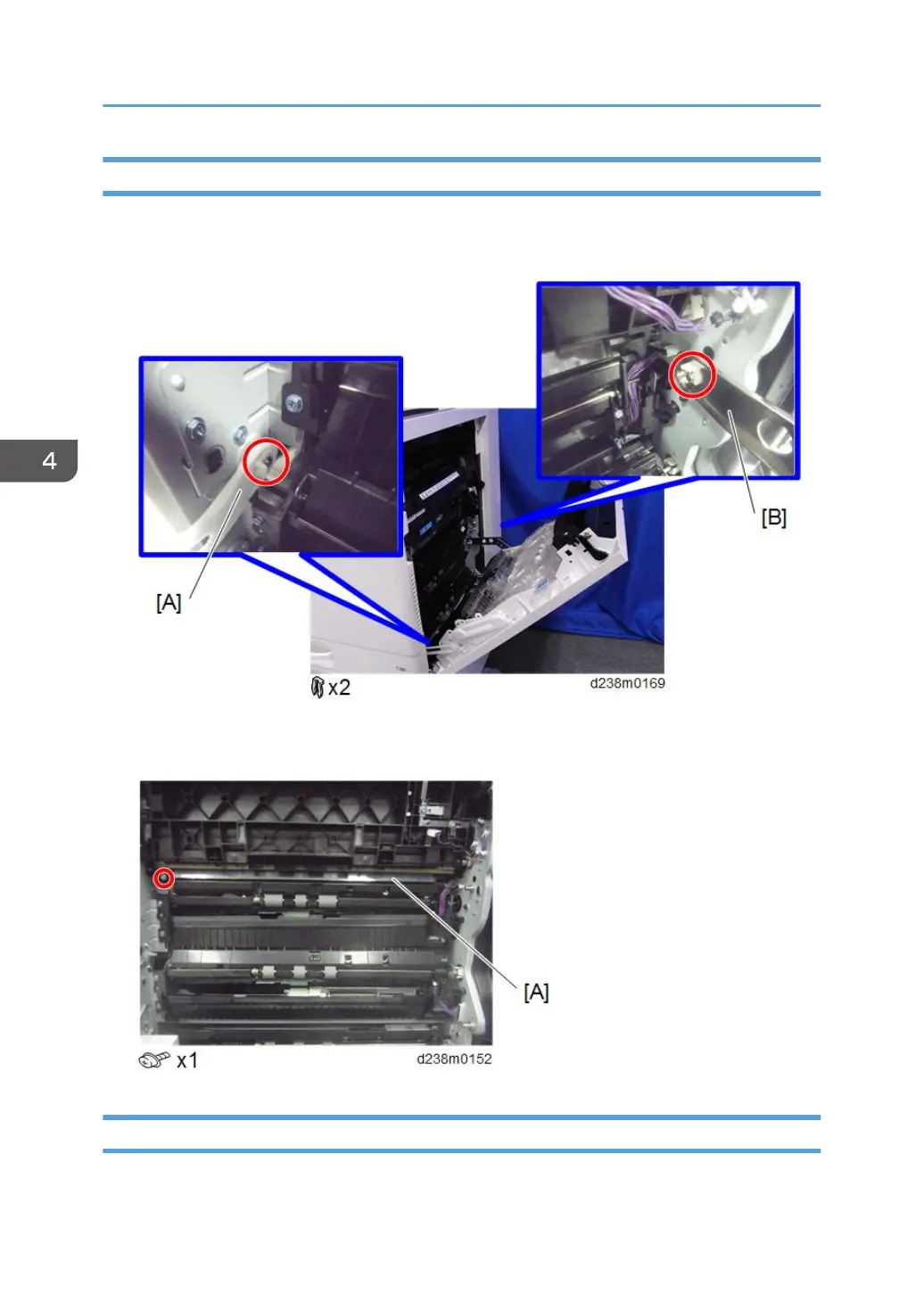

1. Open the right door.

2. Arms [A] [B]

3. Open the right door wide.

4. Paper dust collection unit [A]

Pick-up Roller, Paper Feed Roller, Separation Roller, Torque Limiter

1. Paper feed unit (page 564)
