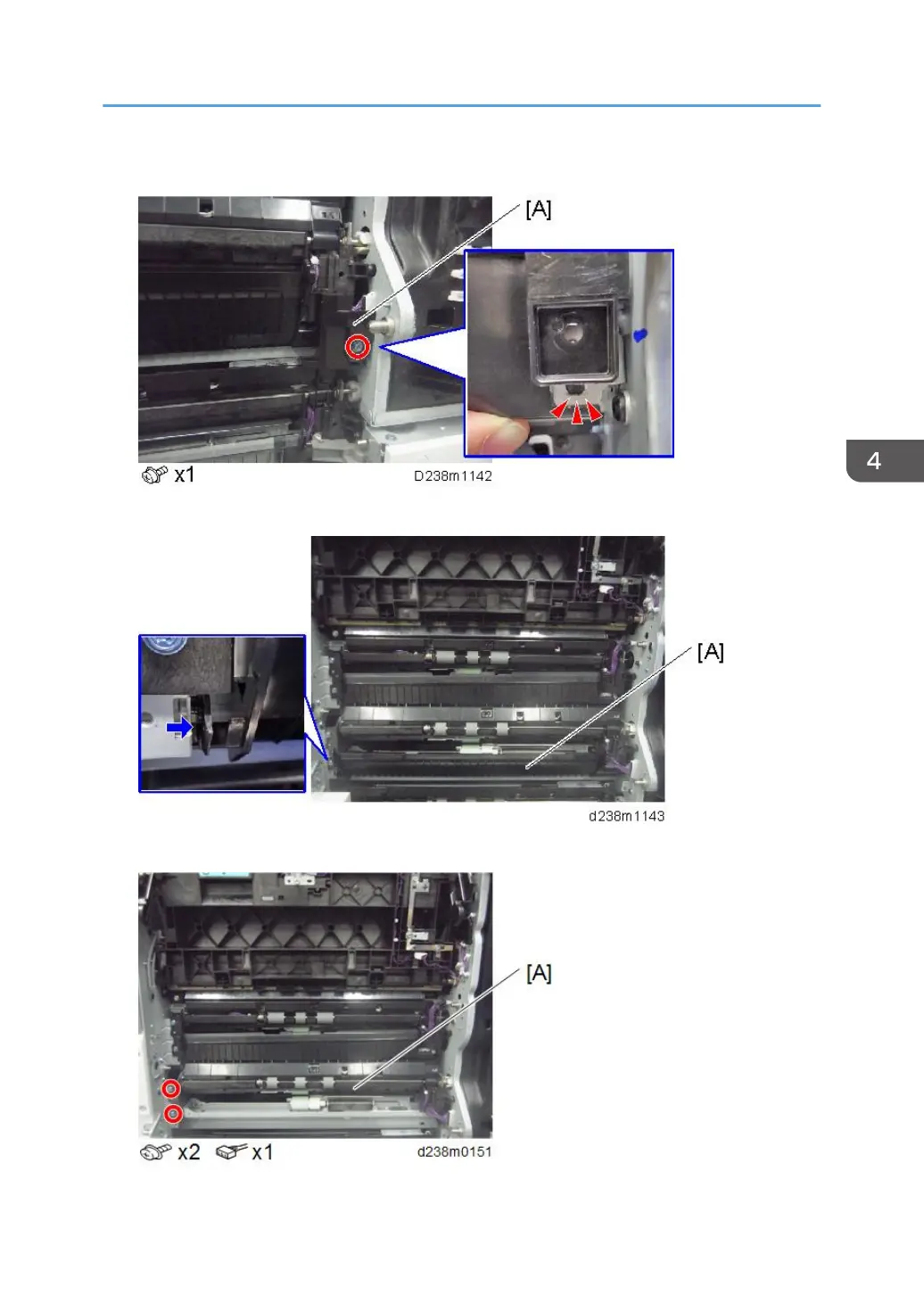

4. Harness guide [A] (Hook x 1)

5. Press the left tab to release the lock, and remove the paper feed guide plate [A].

6. 2nd paper feed unit [A]

Paper Feed

567
