Ricoh MP C2504 - Left Cover

To Next Page

To Previous Page

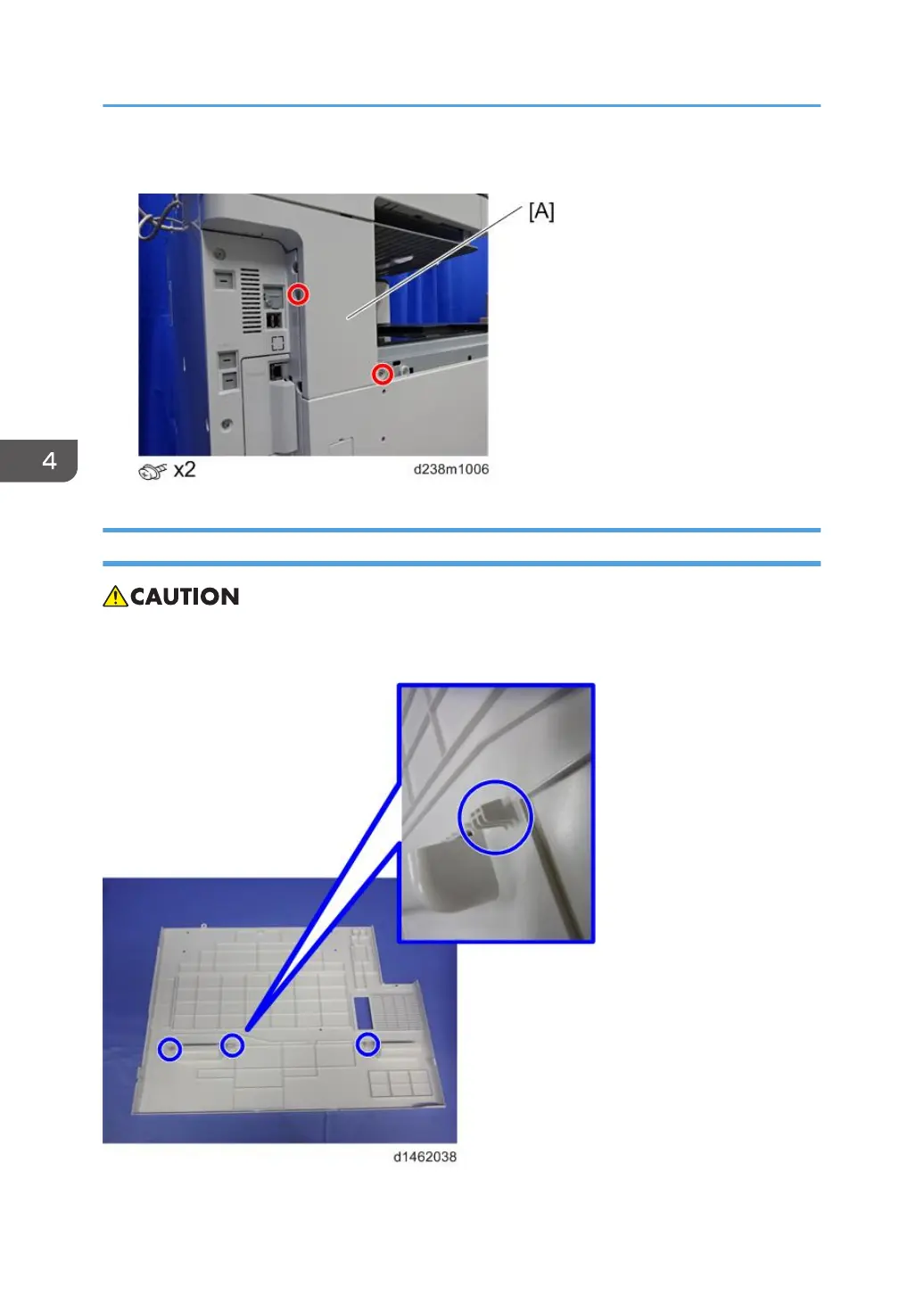

2. Left Rear Cover [A]

Left Cover

• Each part enclosed by a blue circle has a tab. Be careful not to damage it when attaching and

detaching.

4. Replacement and Adjustment

408
