1.
Controller cover (
page 406
)
2.
Ozone filter/Dust filter box (
page 625
)
3.
Upper left cover (
page 406
)
4.
Left rear cover (
page 407
)
5.

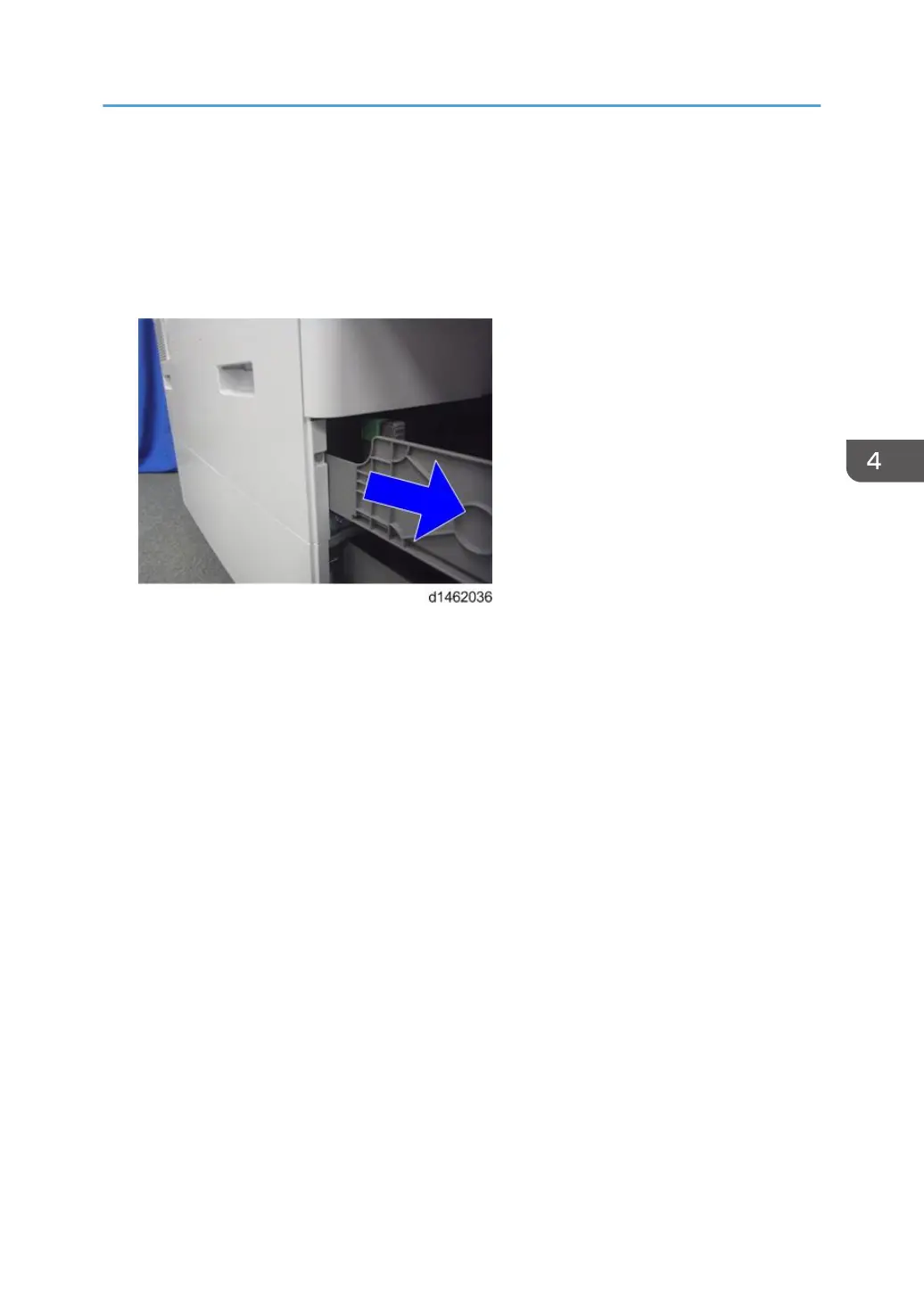

Open the 2nd paper feed tray slightly.
6.
Left cover [A]
Remove it while pressing down.
Exterior Covers
409
