PSU
Generates DC power from a commercial AC power supply, and supplies it to each control circuit.
Comprises an A/C drive circuit for controlling the fixing heater.
Anti-condensation Heater for Scanner, PCDU, and Paper Feed Tray

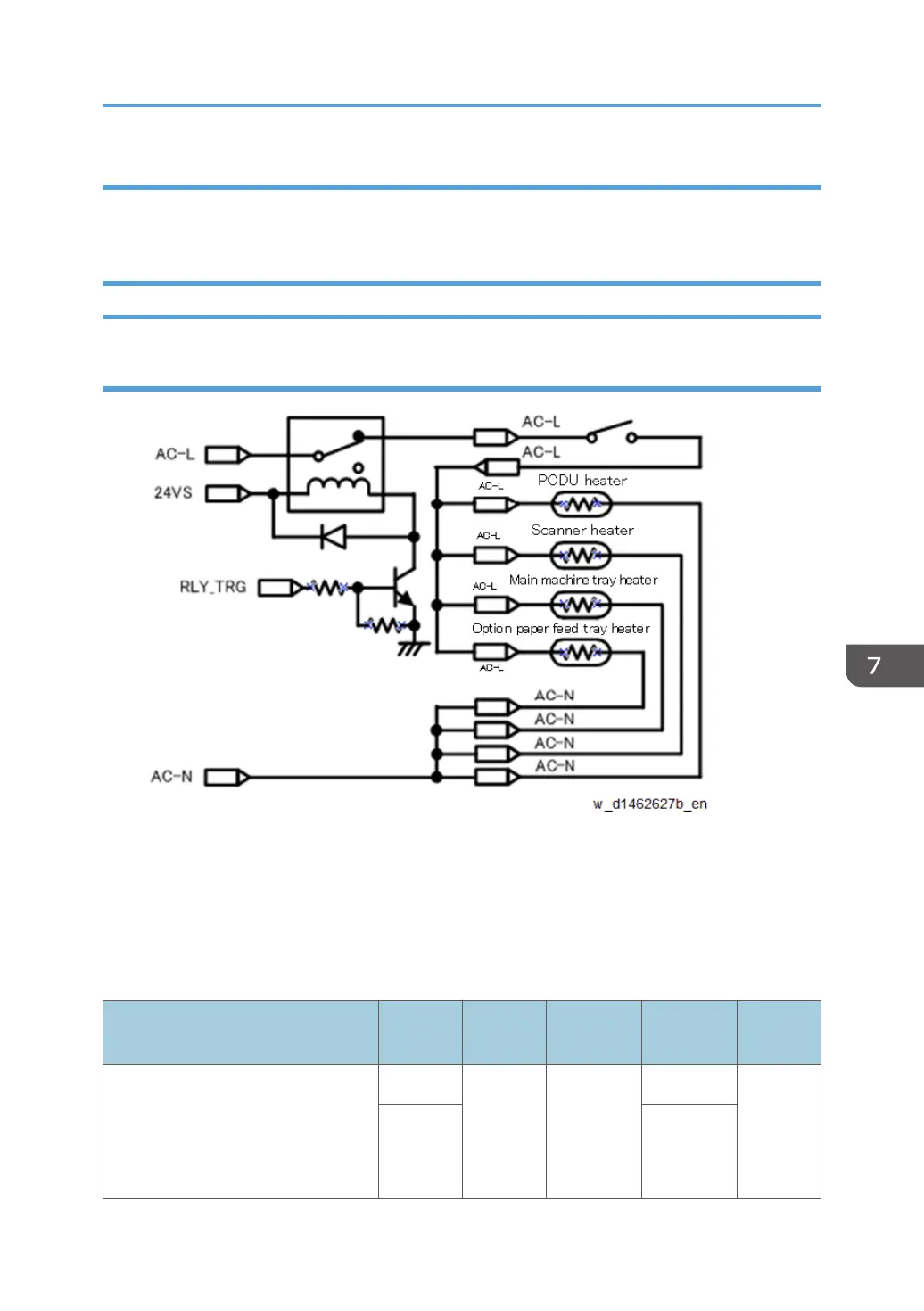

Circuit Configuration
The power circuit of the anti-condensation heaters for scanner and PCDU is linked to the switch of the
paper feed tray heater. Therefore, when the paper feed tray heater power is turned OFF, all heaters are
de-energized. In addition, the operation during printing is controlled so as not to exceed the maximum
power.
The behavior of the heaters when the machine is in standby mode is controlled by SP5-805-001 (Anti-
Condensation Heater OFF/ON).
Heater
SP5-805
-001
Plug-in
Energy
saving
Standby Printing
- Scanner heater
- PCDU heater
- Main machine tray heater
- Optional paper feed tray heater
OFF(0)
ON ON
OFF
OFF
ON(1) ON
Electrical Parts
1201

Ricoh MP C2504 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Scan Type	Flatbed, ADF
Max Scan Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Max Paper Size	A3
Duplex Printing	Yes
Memory (RAM)	2 GB
Print Speed	25 ppm (A4)
Copy Speed	25 cpm (A4)
Fax Resolution	200 x 200 dpi
Paper Capacity	1200 sheets
Connectivity	USB, Ethernet, Wi-Fi
Dimensions	587 x 685 x 913 mm
Control Panel	9-inch Smart Operation Panel
