Paper Exit Driven Roller and Paper Support Guide
Paper Exit Driven Roller

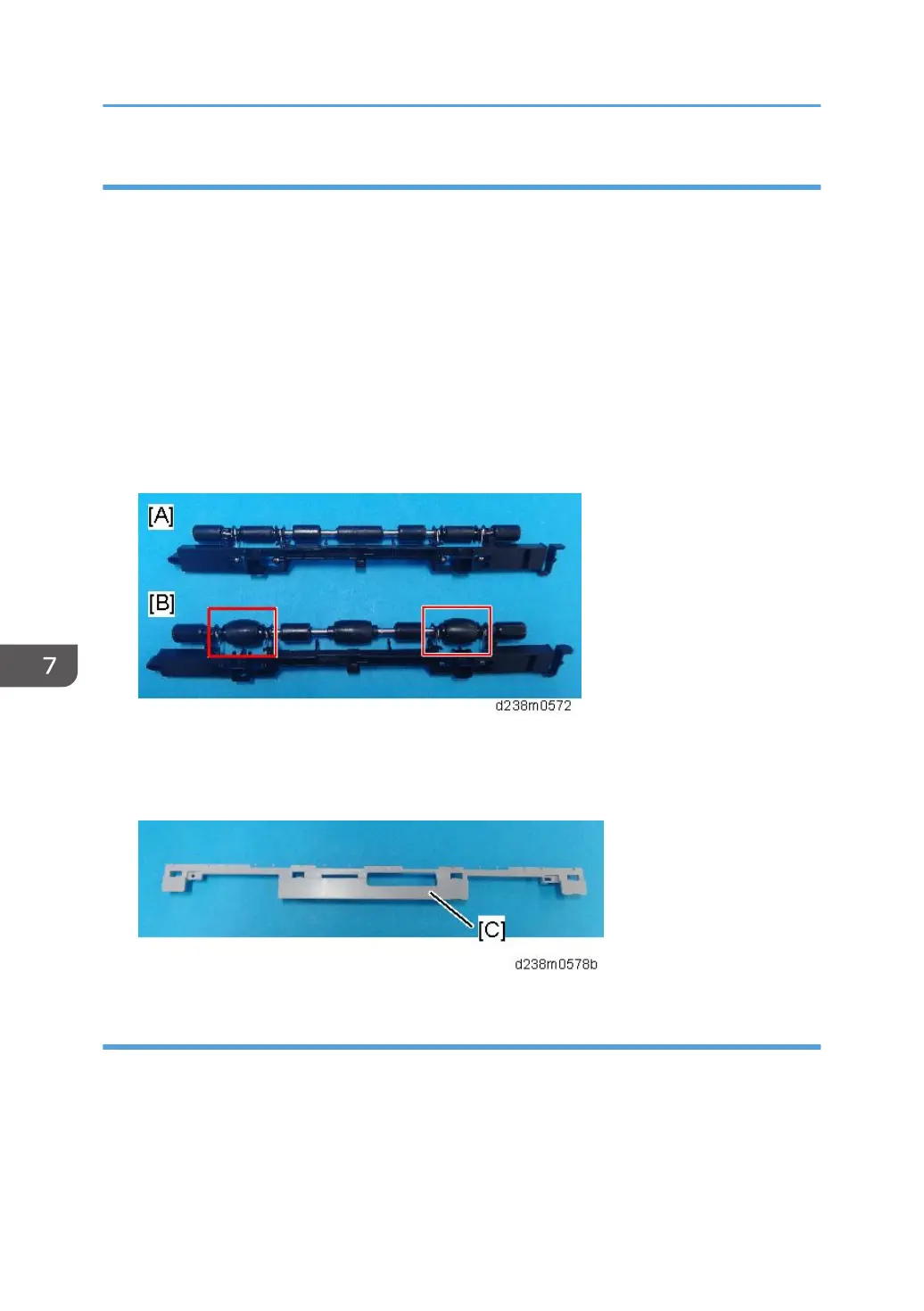

The standard paper exit driven roller [B] is drum-shaped and improves the stacking performance of
the main machine exit tray by adding stiffness to the paper. However, if the paper has too much
stiffness, it may jam as it enters the optional paper path when the internal peripheral is connected.
Therefore, a flat type driven roller [A] is used to reduce the stiffness when transporting the paper.
The following options use the flat type driven roller:
• Internal Finisher SR3130
• Bridge Unit BU3070
• Internal Finisher SR3180
• Side Tray Type M3
Paper Support Guide
To prevent paper jam when the paper is delivered from the machine’s paper exit to the internal exit
peripherals, attach the paper support guide [C] (supplied with the peripherals).
Removing Wrinkling in the Tray
When paper larger than A3 is set, wrinkles may appear at the end of the paper. As a countermeasure,
the previous machine used an L-shaped sheet metal [B].
