Ricoh MP C2504 - APS Sensor; Scanner HP Sensor

To Next Page

To Previous Page

APS Sensor

1. Exposure glass (page 434)

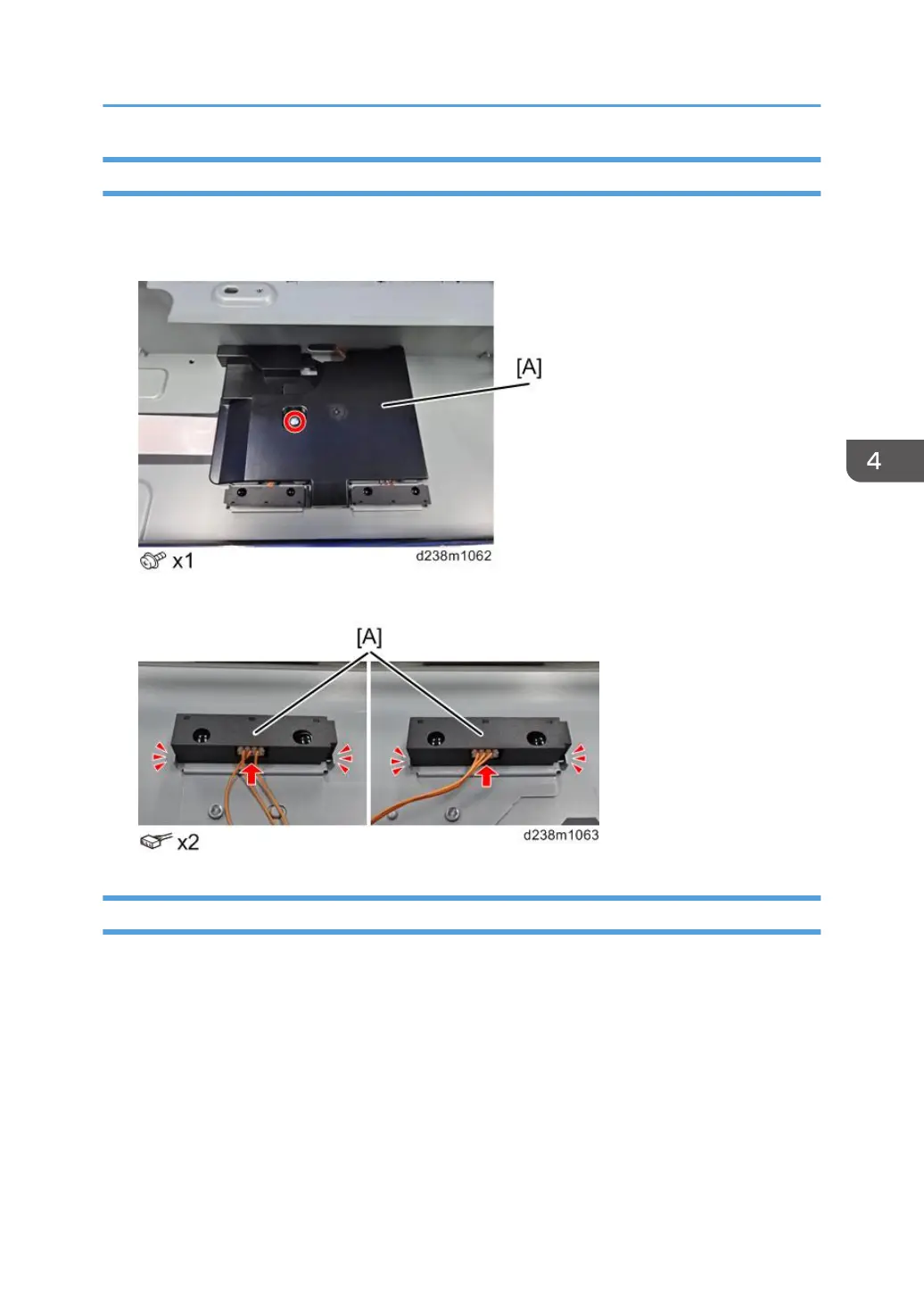

2. APS sensor harness cover [A]

3. APS sensors [A] (Hook x 4)

Scanner HP Sensor

1. Exposure glass (page 434)

Scanner Unit

445
