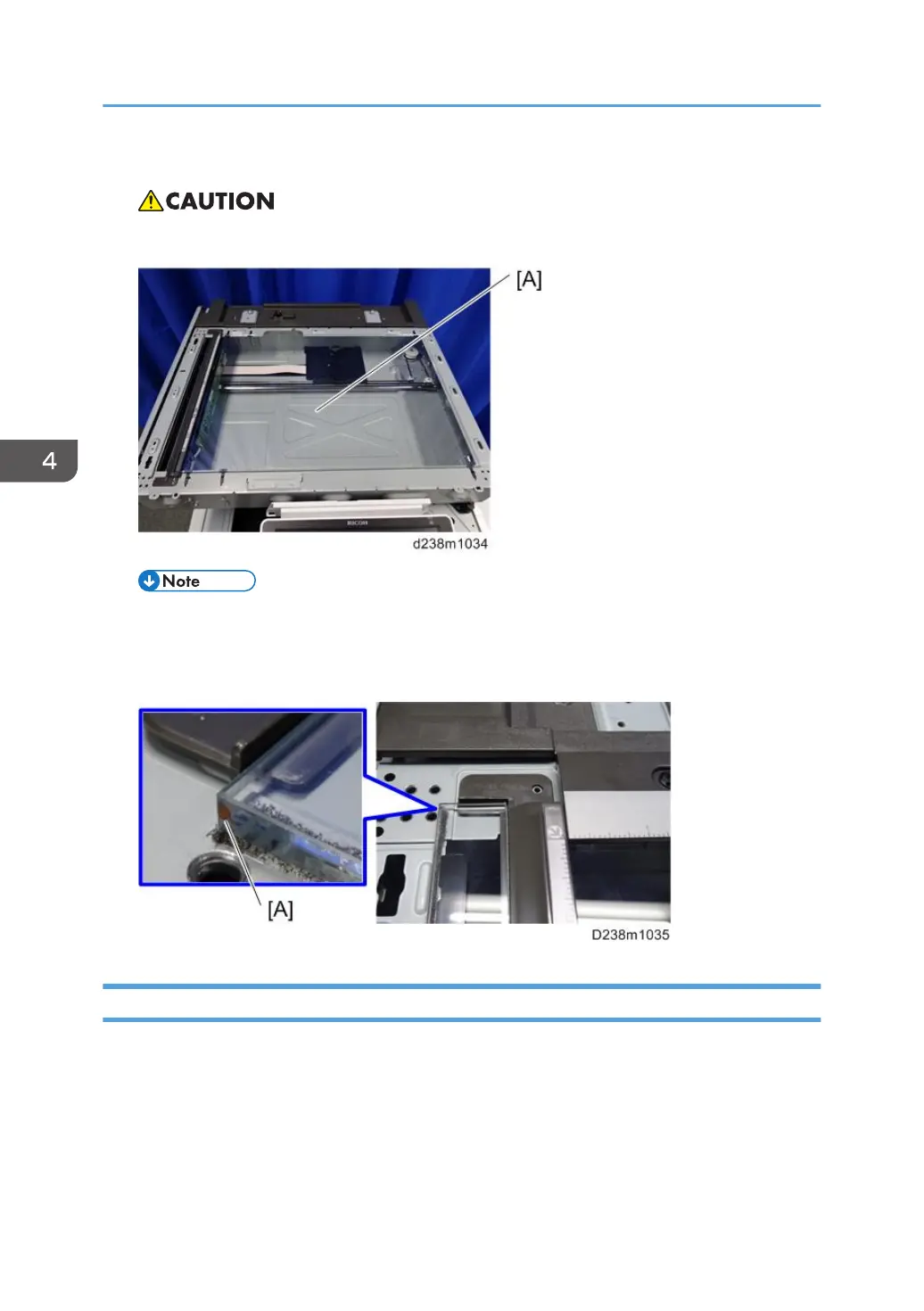

6. Left scale and exposure glass [A]
• The exposure glass and the left scale are attached with double-sided tape.
• When installing, please follow the points below:
• Install the sheet-through exposure glass with the mark [A] at the rear left corner.
• Set so that the locating hole of the left scale fits over the locating boss of the front/rear frame.
Scanner Carriage
1. Exposure glass (page 434)
2. Scanner front cover (page 432)
4. Replacement and Adjustment
436
