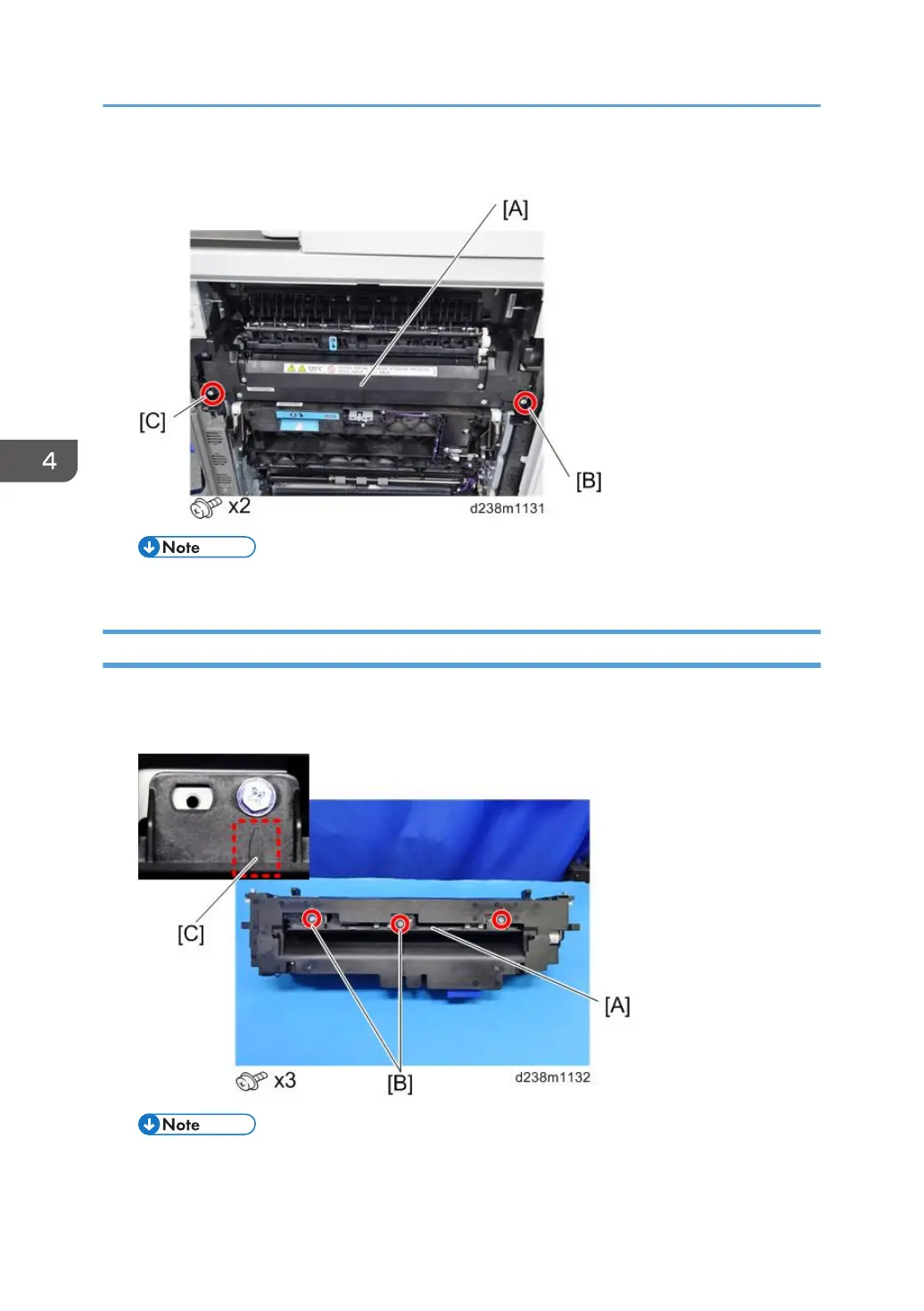

3. Fusing unit [A]
• To attach the fusing unit, fasten the screws in the order [B] (rear), [C] (front).
Fusing Entrance Guide Plate
1. Fusing unit (page 541)
2. Fusing entrance guide plate [A].
• The screws [B] are threaded screws. When you assemble the unit, take care not to use the
wrong screws.
