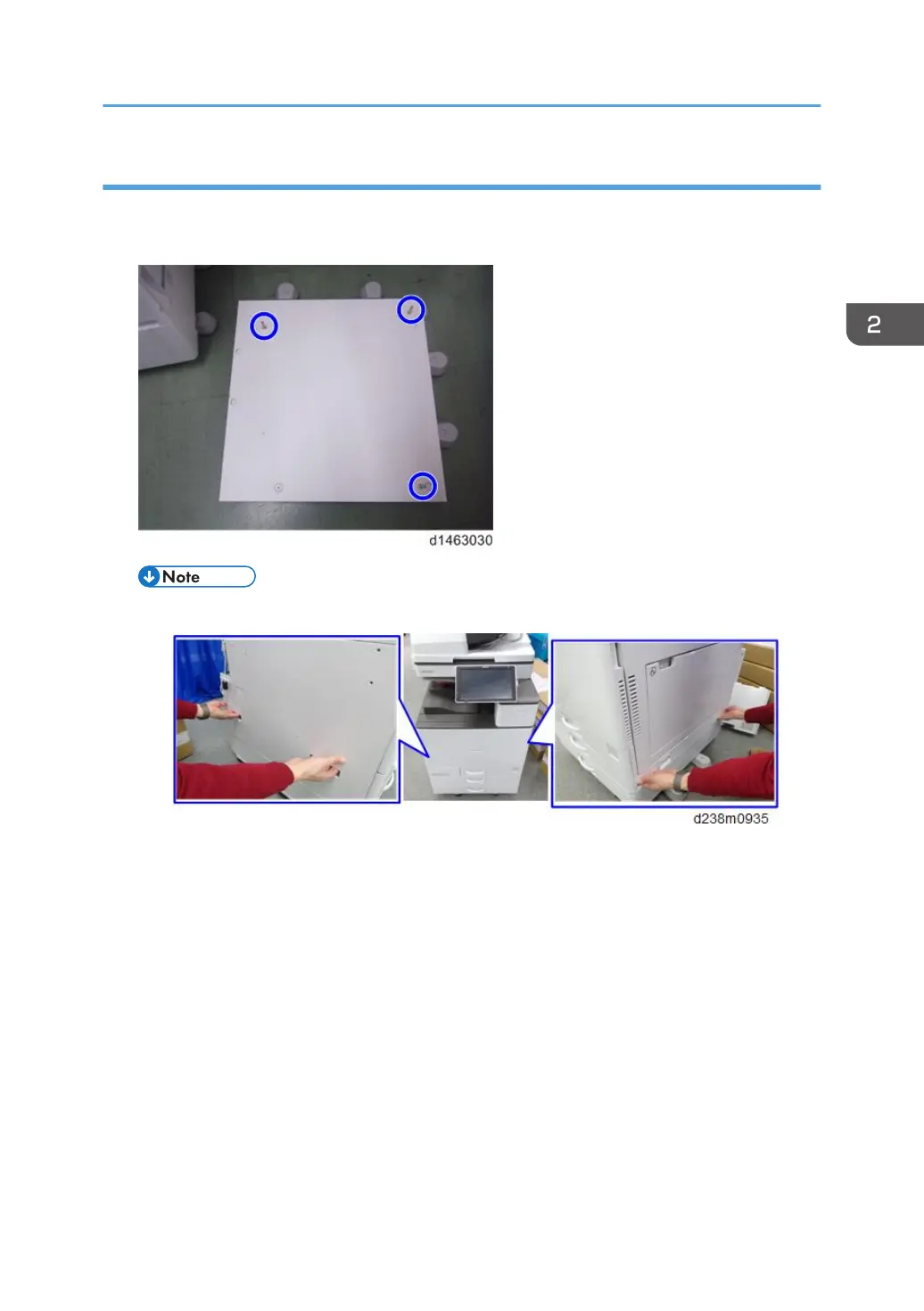

How to Place the MFP on the Caster Table

1. Holding the grips on the machine, align the machine with the locating pins, and place the

machine on the caster table.

• When you lift the machine, hold the lifting handles.

• Do not hold any other parts of the machine when lifting it, because this may cause the

machine to deform.

• Do not put the machine down on the caster table as a temporary resting place. This may

cause the machine to deform. Always connect the machine and caster unit properly.

2. Pull out the 2nd paper feed tray.

3. Using a securing bracket, fix the machine to the paper tray unit (spring washer: screw:

M4×10: 1).

4. Attach the securing brackets at 2 positions to left and right at the rear of the machine

(screws: 1 each).

5. Reattach the 2nd paper feed tray to the machine.

Caster Table Type M3 (D178)

141
