Ricoh MP C2504 - Replacement

To Next Page

To Previous Page

Item SP

Image Transfer Cleaning Unit SP3-701-102

Replacement

1. Image transfer belt unit (page 474)

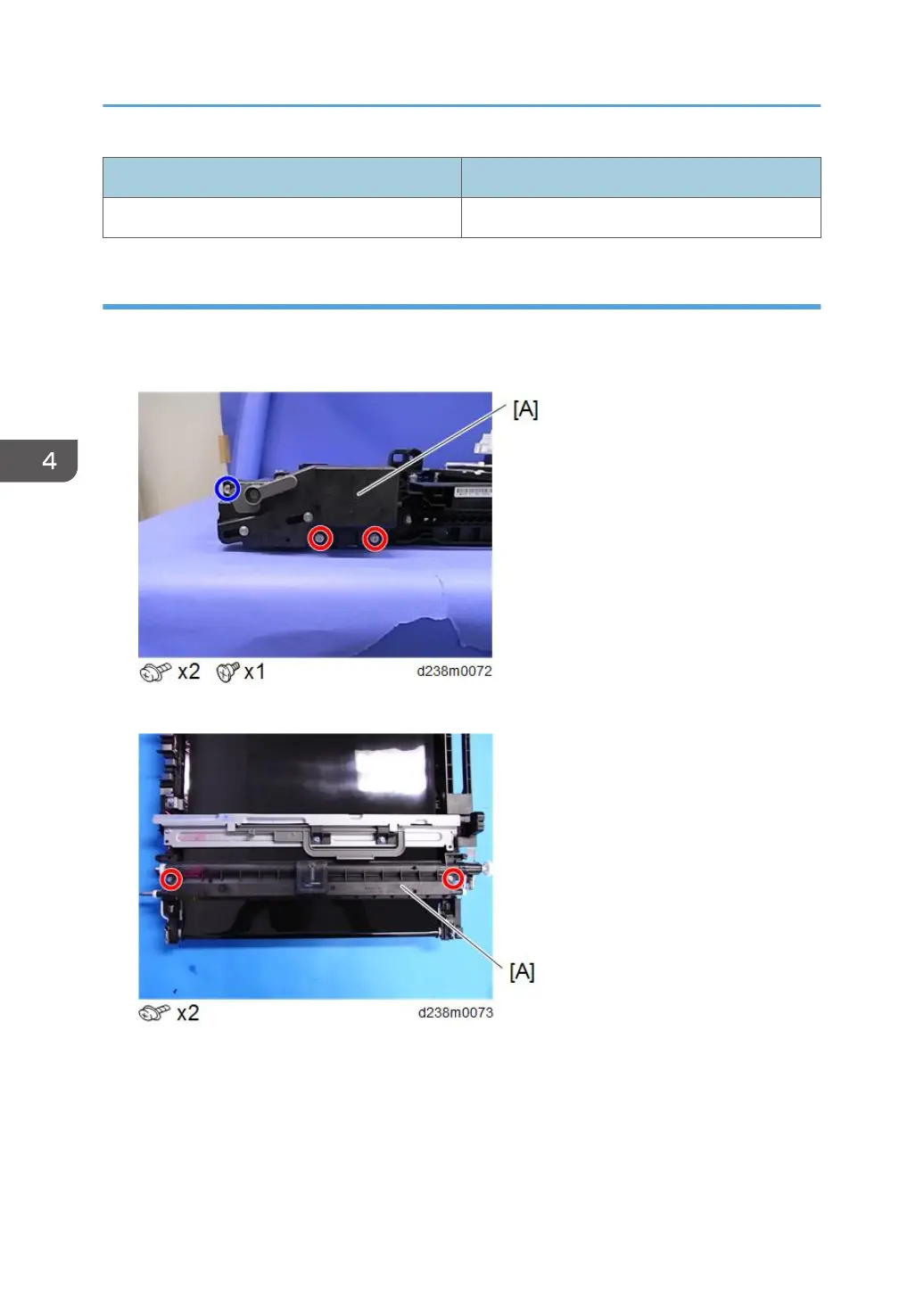

2. Image transfer lock unit [A]

3. Remove the screws above the image transfer cleaning unit [A].

4. Replacement and Adjustment

480
