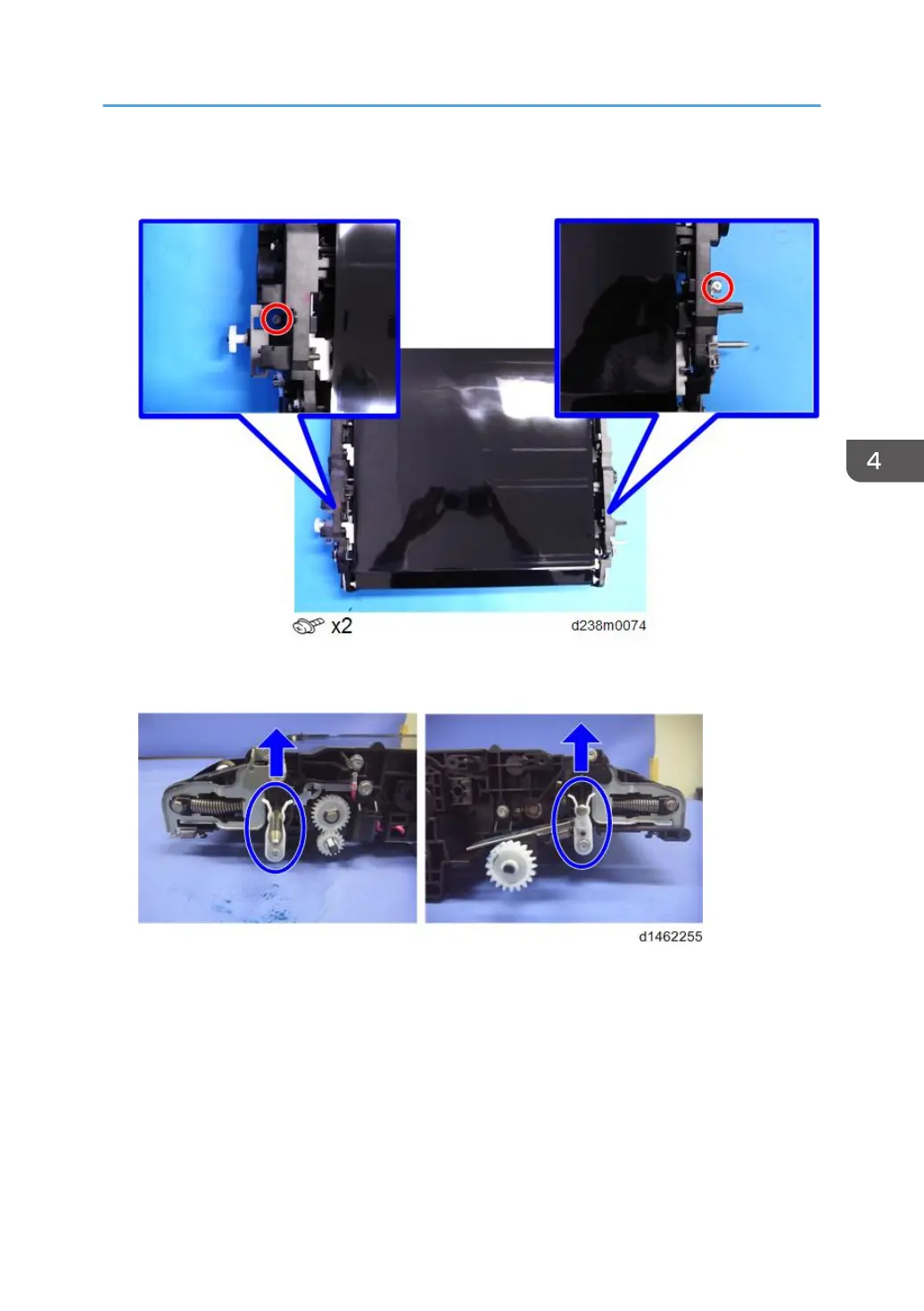

4. Turn the whole image transfer belt unit over, and remove the screws below the image

transfer cleaning unit.

5. While releasing the hook, lift the image transfer belt unit gently, and remove the image

transfer cleaning unit.

Image Transfer Unit

481
