Caster Table Type M3 (D178)

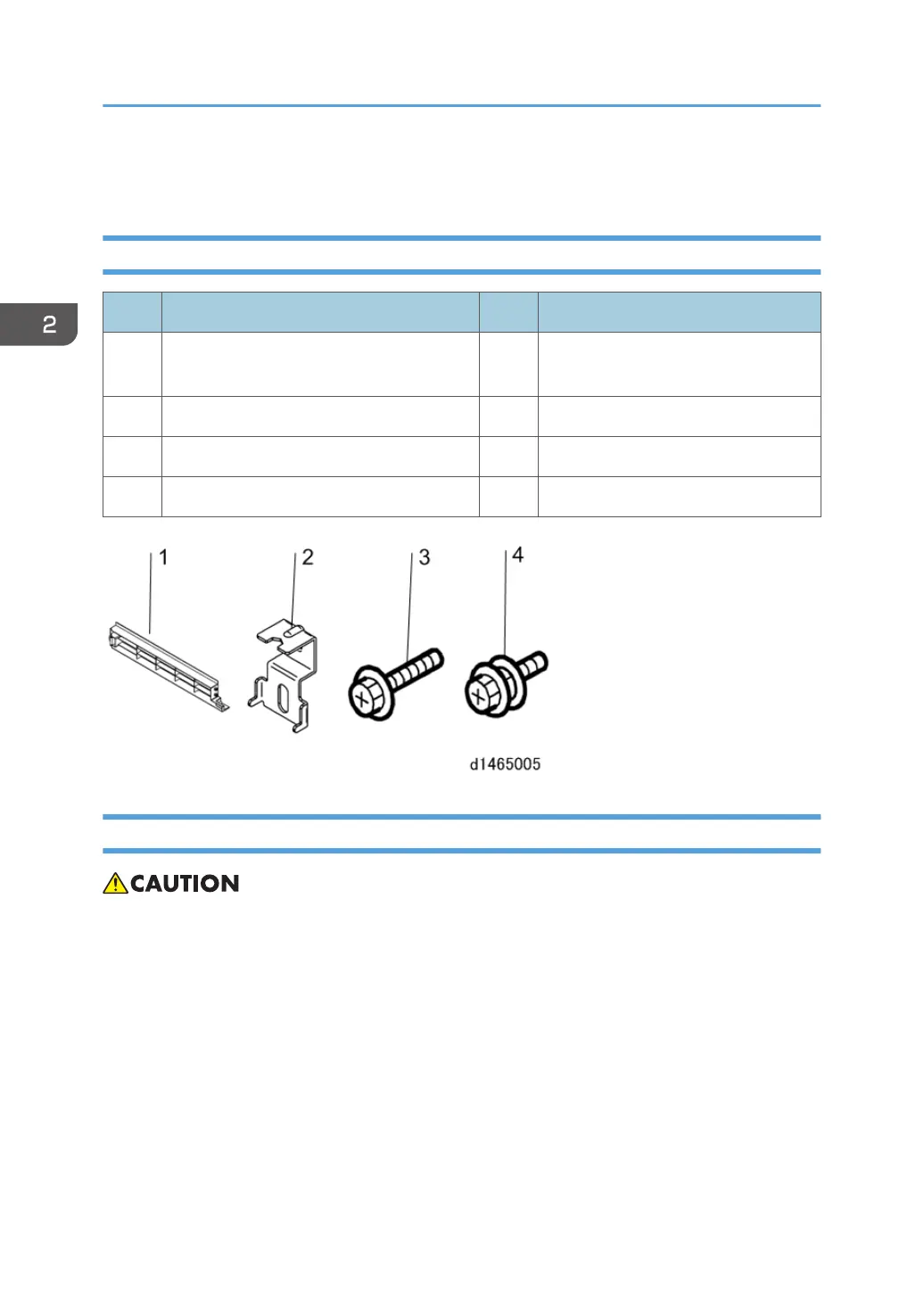

Accessory Check
No. Description Q’ty Remarks
1 Right Lower Cover 1
Not used when Paper Feed Unit
PB3150 is installed.
2 Securing Bracket 2
3 Screws (M4 × 10) 2
4 Screw with Spring Washer (M4 × 10) 1
Installation Procedure
• The main machine weighs approximately 100 kg. Make sure to lift it with the help of at least one
more person.
• The machine must be held at the correct locations, and must be lifted slowly. If it is lifted with force,
handled carelessly or dropped, it will result in an injury.
• When installing this option, turn OFF the main power and unplug the power cord from the wall
socket. If installing without turning OFF the main power, an electric shock or a malfunction may
occur.
• Be sure to join the machine and caster table to prevent equipment from falling over. If it is not
joined, the machine will move or fall over, which will result in an injury.
2. Installation
140
