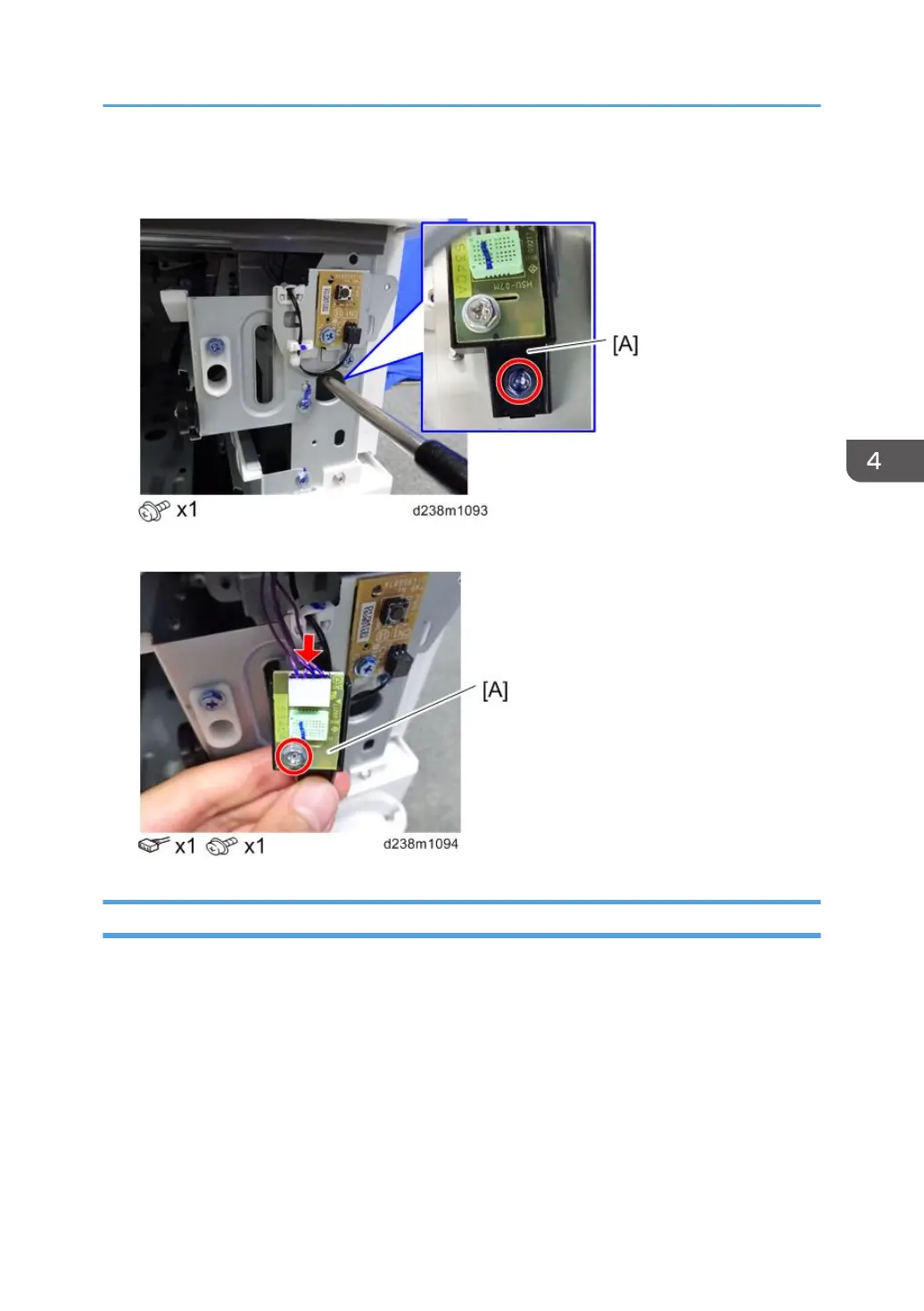

3. Insert a screwdriver through the hole in the frame, and detach the temperature and

humidity sensor together with its bracket [A].

4. Temperature and humidity sensor [A]

ITB Contact and Release Sensor

1. Image transfer belt unit (page 474)

2. PCDUs (page 459)

Image Transfer Unit

505
