Ricoh MP C2504 - Scanner Right Cover; Scanner Left Cover

To Next Page

To Previous Page

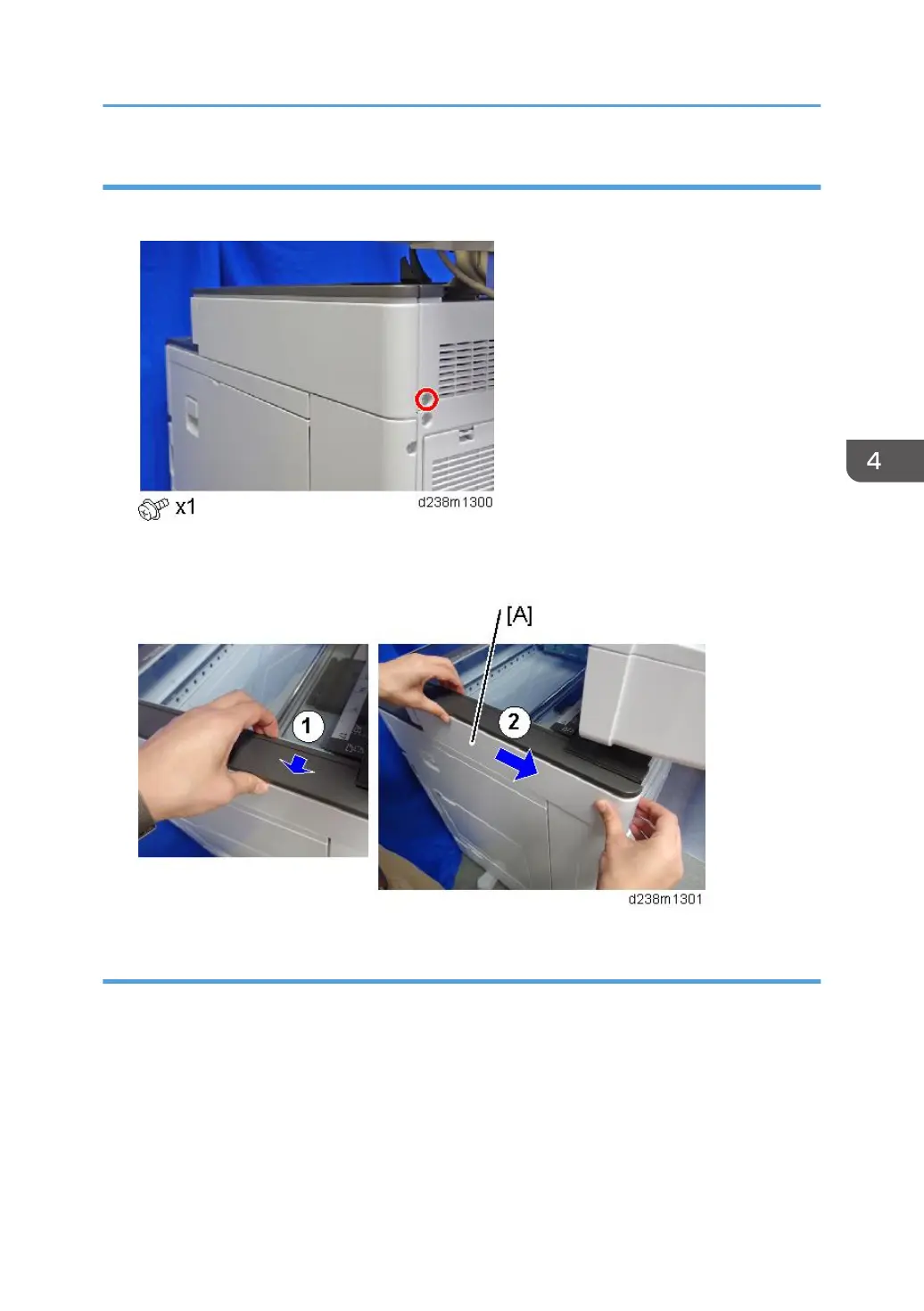

Scanner Right Cover

1. Remove the screw.

2. Scanner right cover [A]

Remove the hook at the top, and then slide the cover towards the rear.

Scanner Left Cover

1. Scanner front cover (page 432)

Scanner Unit

433
