Ricoh MP C2504 - Non-Contact Thermistor

To Next Page

To Previous Page

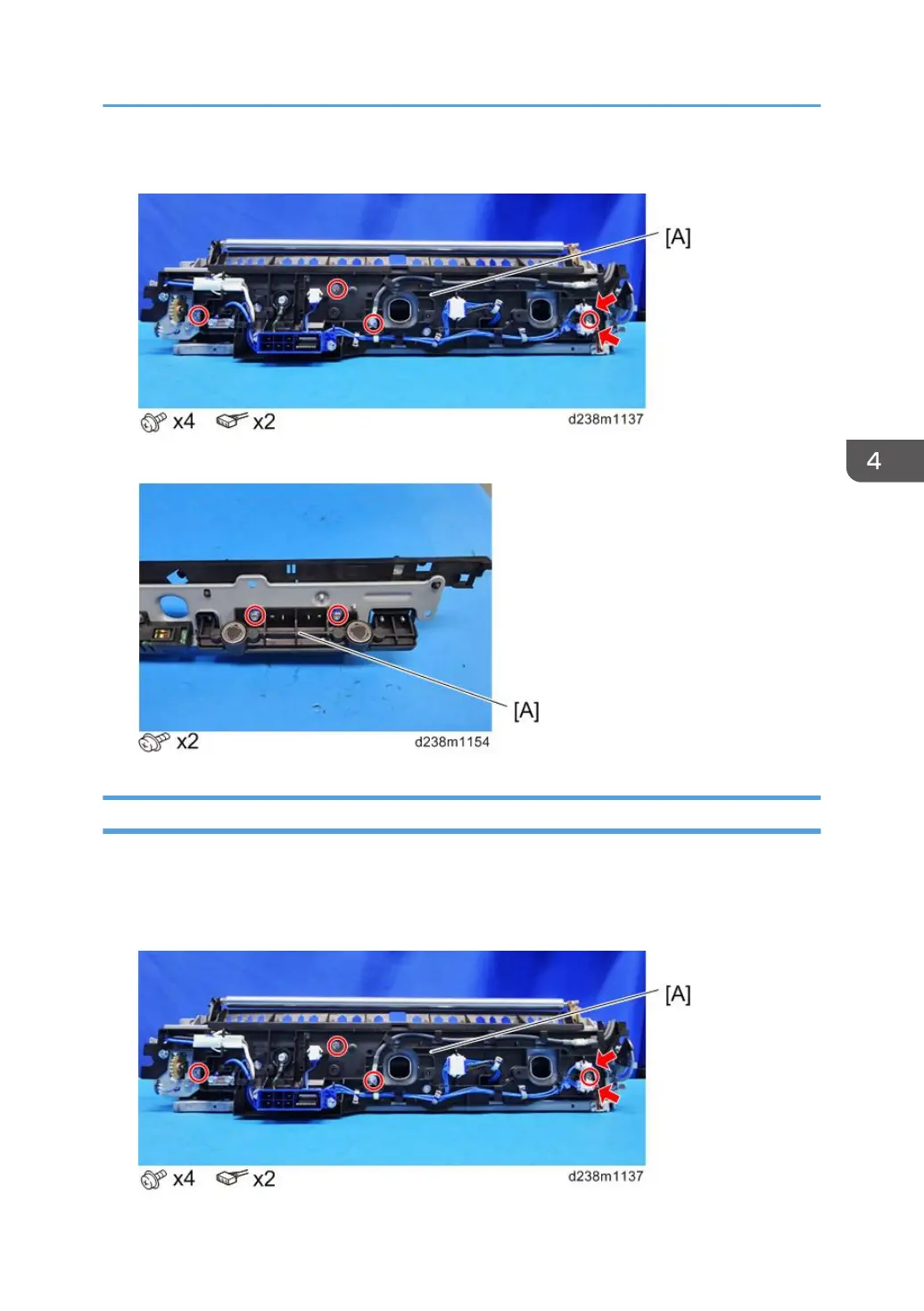

3. Left frame [A]

4. Fusing sleeve thermostat unit [A]

Non-Contact Thermistor

1. Fusing upper cover (page 544)

2. Fusing lower cover (page 545)

3. Left frame [A]

Fusing Unit

553
