Ricoh MP C2504 - Component Layout; Scanner Unit

To Next Page

To Previous Page

Component Layout

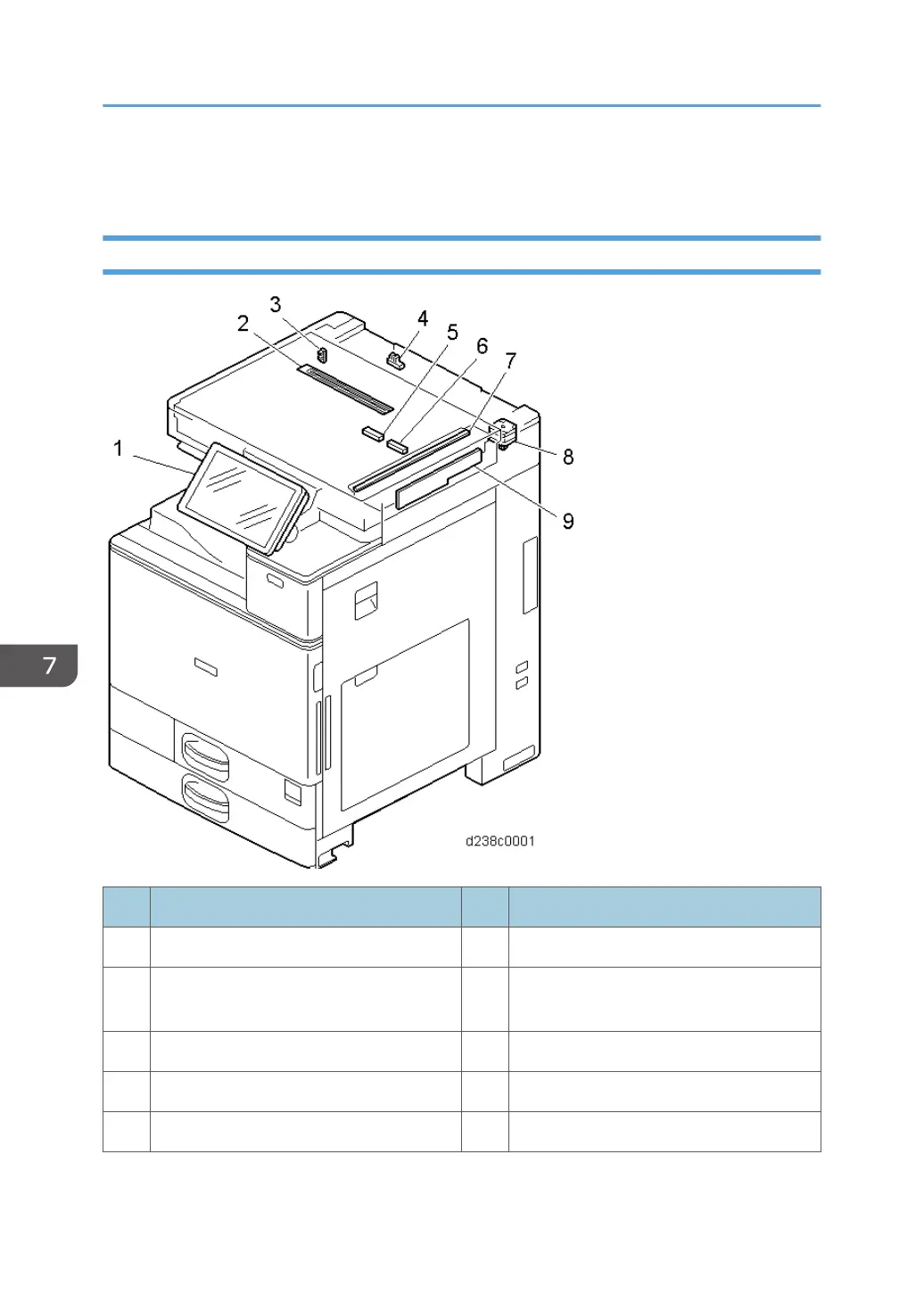

Scanner Unit

No. Description No. Description

1 Operation panel 6 Auto paper size (APS) sensor

Anti-condensation heater (Scanner heater)

7 Scanner lamp unit (LED)

3 Scanner HP sensor 8 Scanner motor

4 ARDF/Platen cover sensor 9 Sensor board unit (SBU)

5 Auto paper size (APS) sensor

Service part
