Ricoh MP C2504 User Manual

Transport Coil Unit
Y
1. Image transfer belt unit (page 474)
2. PCDU (page 459)
3. Toner bottle drive motor (page 530)
4. Sub hopper (page 522)
5. ID chip contact board (page 532)

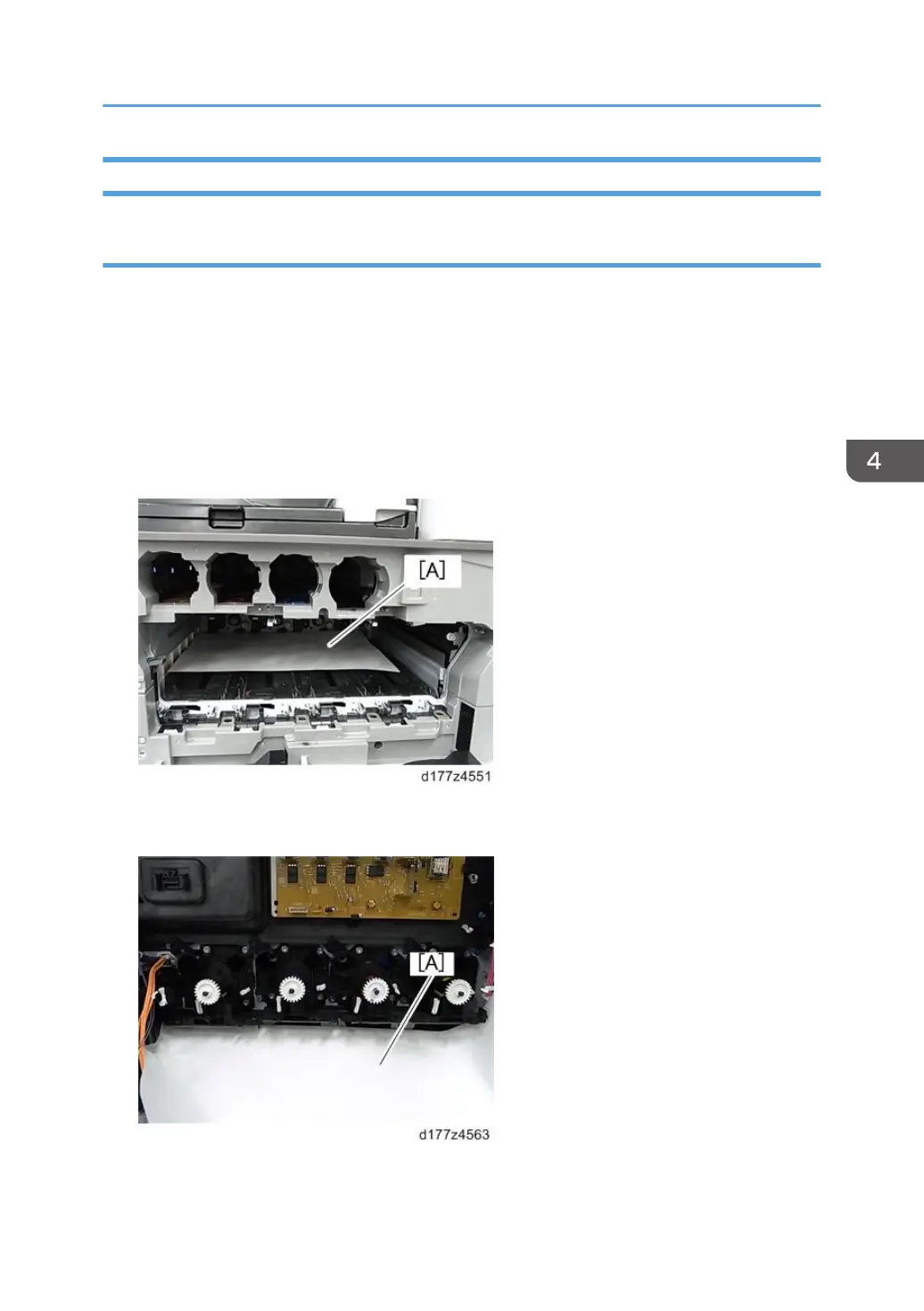

6. Put a piece of disposable paper [A] on the inside of the machine to avoid damage due to
toner spillage.
7. Put a piece of disposable paper [A] under the transport coil to avoid damage due to toner
spillage.
Drive Unit
535
