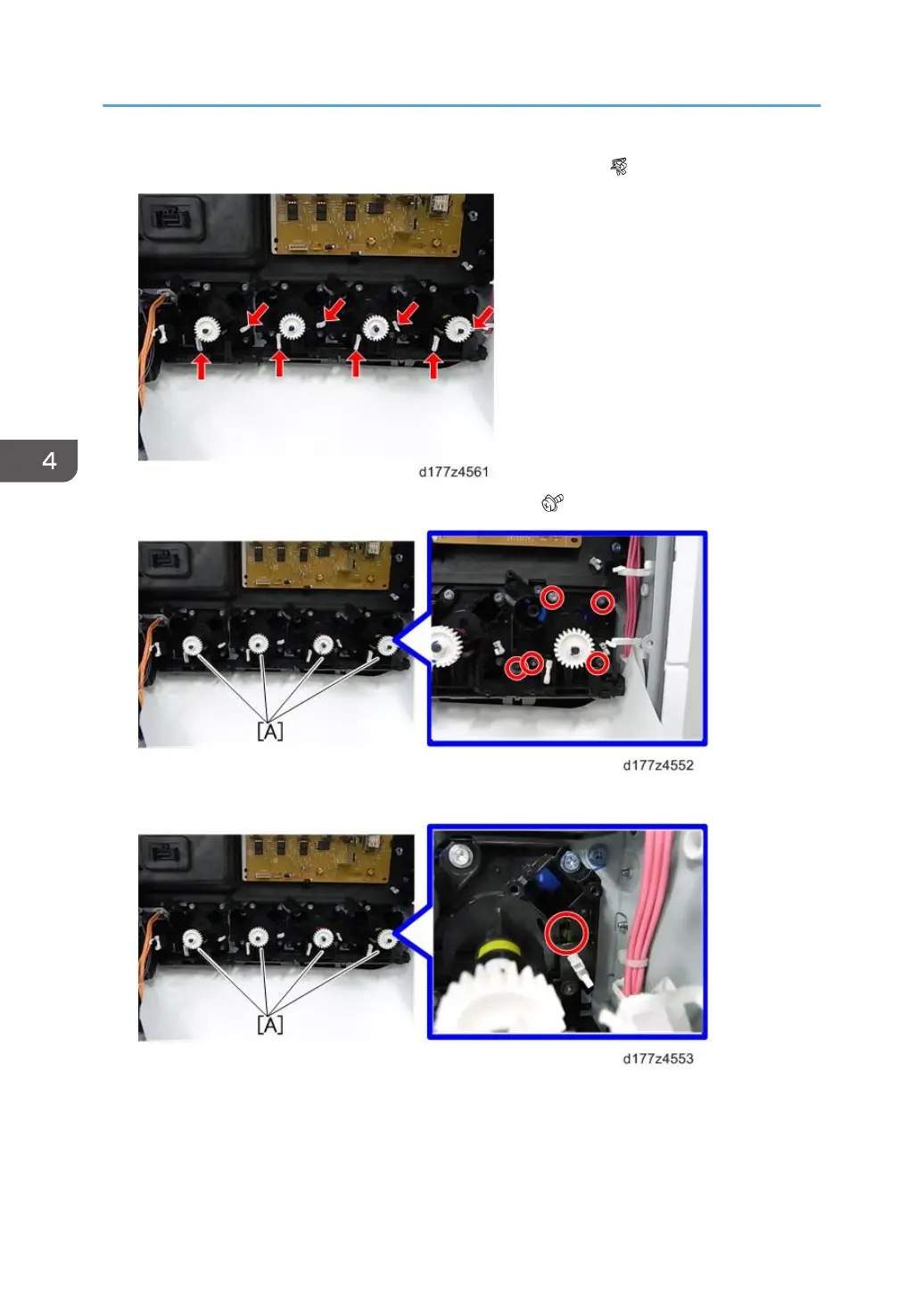

8. Remove all the harnesses connecting to the transport coil unit ( ×8).

9. Remove the screws fixing the transport coil units [A] ( ×5, each color).

10. Release the claws for the transport coil units [A] (claw ×1, each color).
