Ricoh MP C2504 - Installation Requirements; Environment

To Next Page

To Previous Page

2. Installation

Installation Requirements

Environment

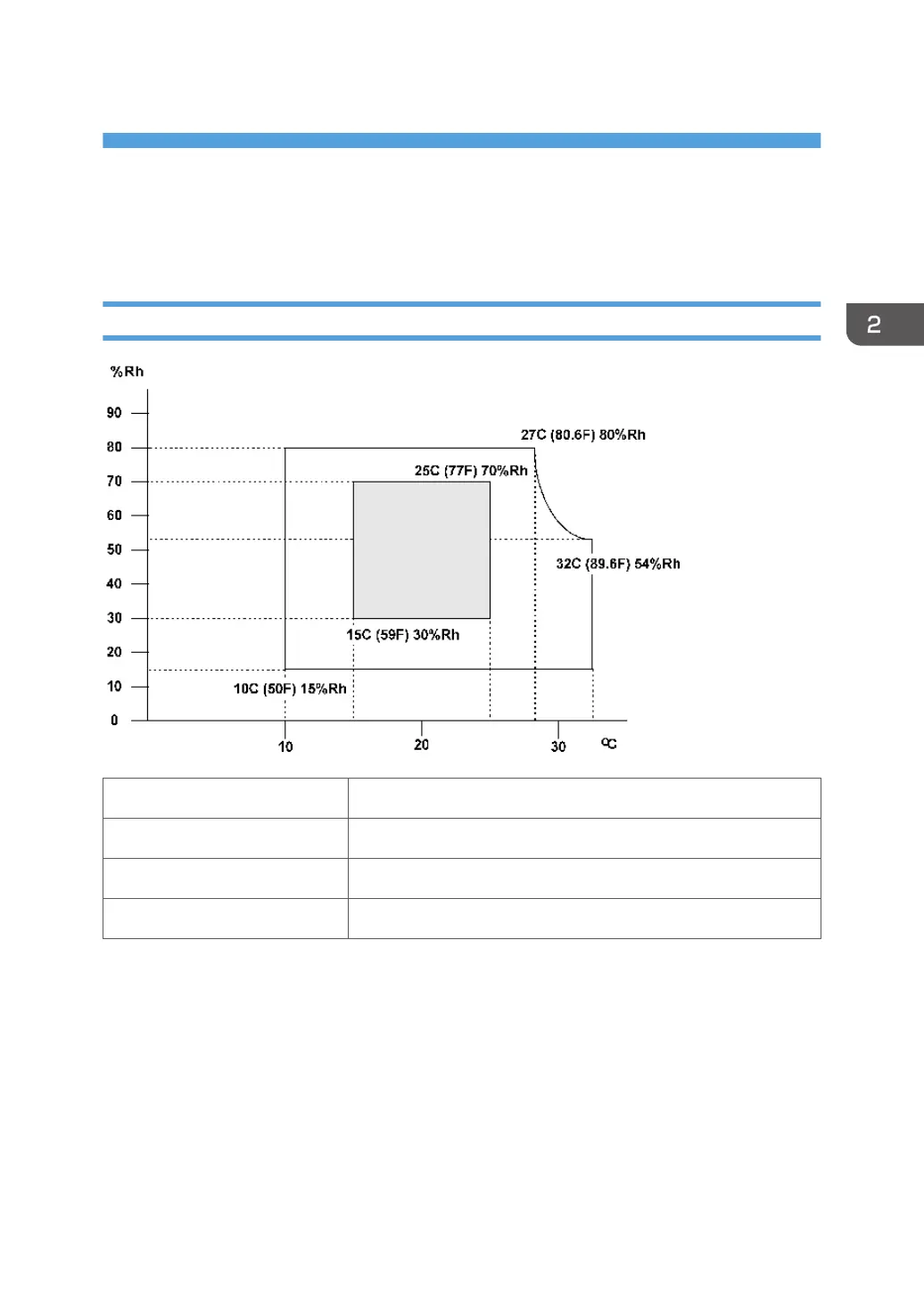

Temperature Range: 10°C to 32°C (50°F to 90°F)

Humidity Range: 15% to 80% RH

Ambient Illumination: Less than 1,500 lux (do not expose to direct sunlight.)

Ventilation: Room air should turn over at least 30 m

/hr/person
