Ricoh MP C2504 - Paper Transfer; Paper Exit

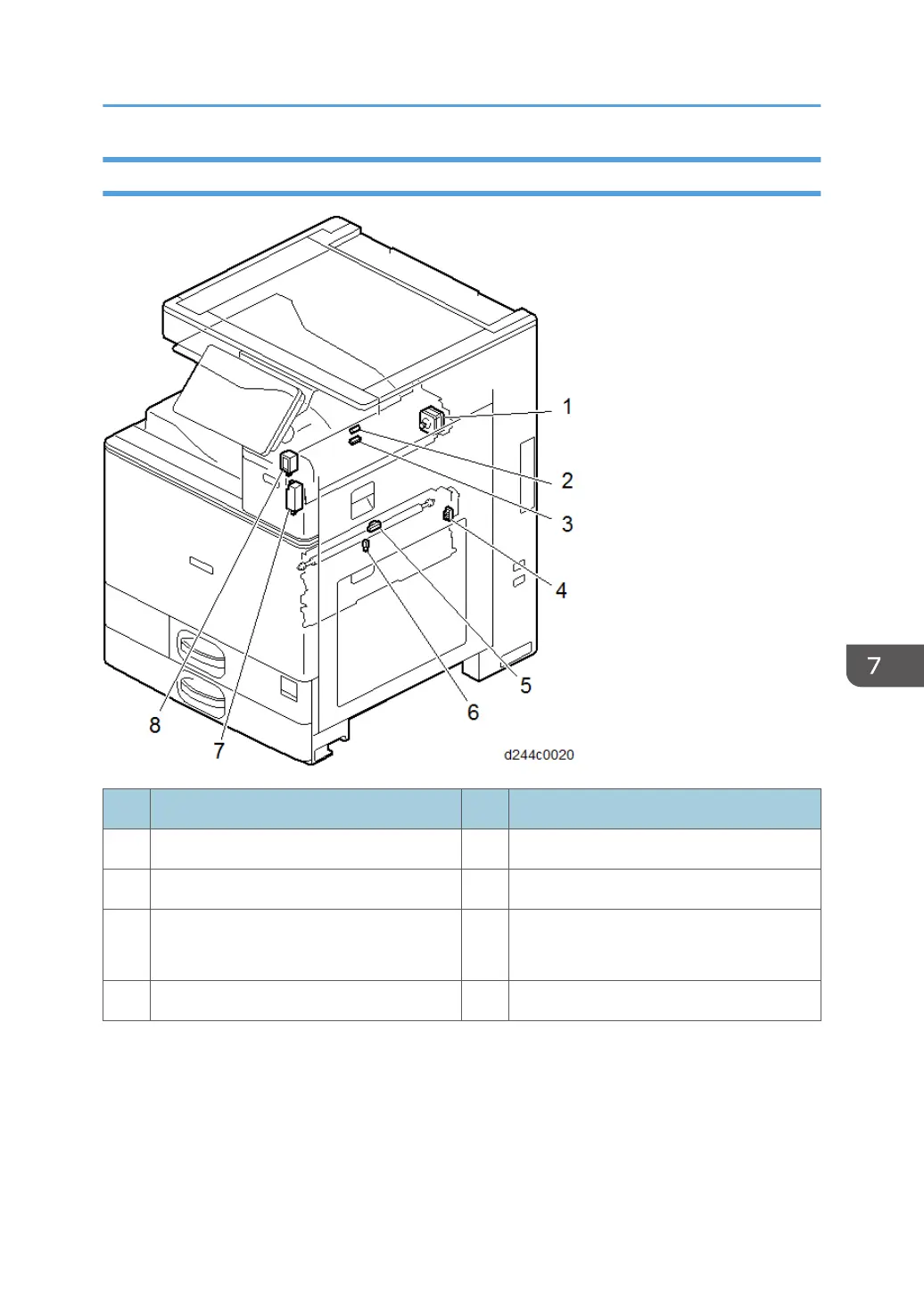

Paper Transfer / Paper Exit
No. Description No. Description
1 Reverse motor 5 Fusing entrance sensor
2 Reverse sensor 6 Fusing exit sensor
3 Paper exit sensor 7
Fusing exit drive solenoid
(installed on the main machine)
4 PTR open/close sensor 8 Paper exit solenoid
Component Layout
1095
