Ricoh MP C2504 User Manual

Laser Exposure

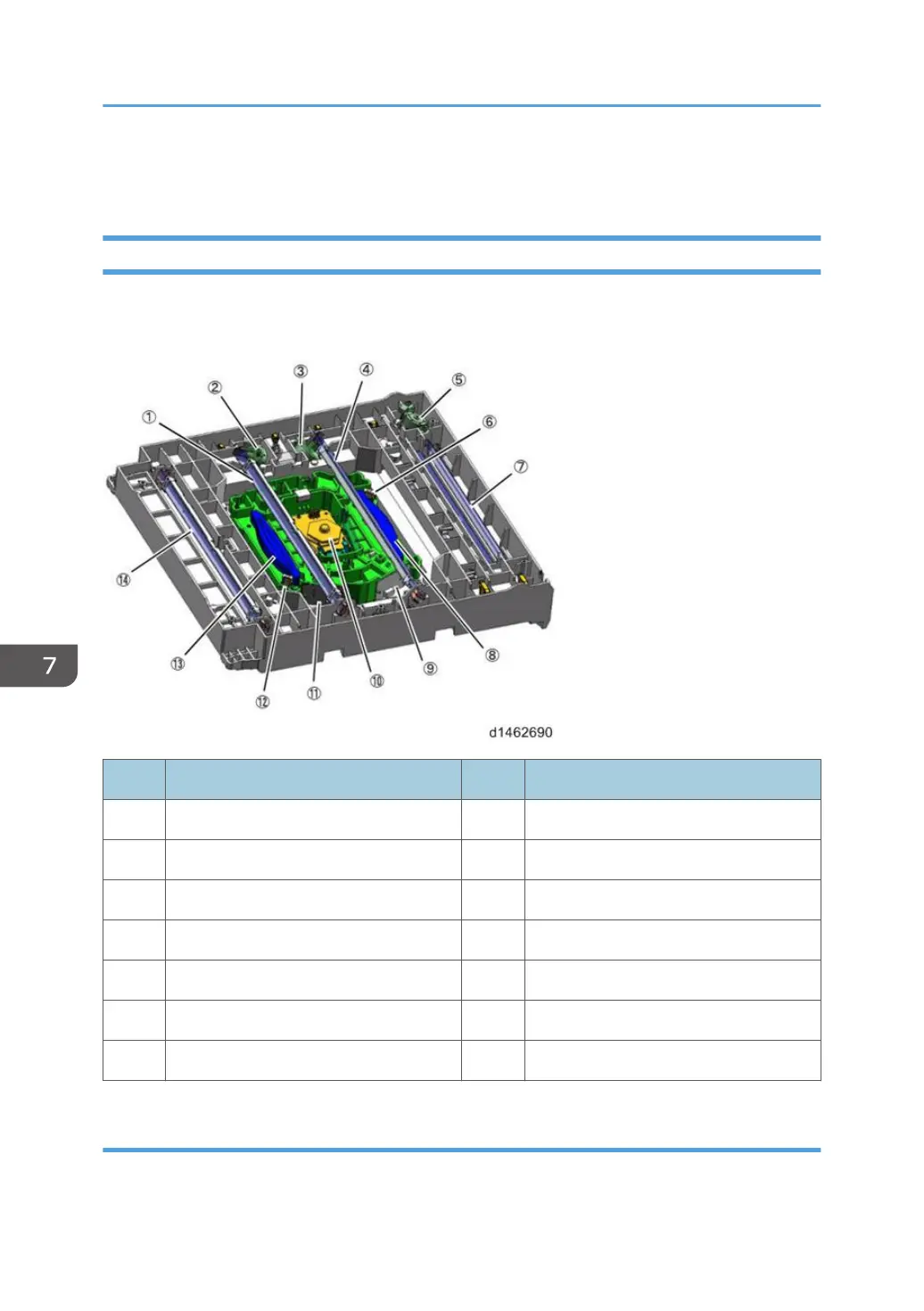

Overview
Four stations (one for each color).
No. Description No. Description
1 2nd mirror 8 F-theta lens-M/Y
2 Laser optics positioning motor (C) 9 LD drive board
3 Laser optics positioning motor (M) 10 Polygon mirror motor
4 2nd mirror 11 LD drive board
5 Laser optics positioning motor (Y) 12 Cylinder lens
6 Cylinder lens 13 F-theta lens-Bk/C
7 1st mirror 14 2nd mirror
Parts Construction
The write unit comprises a housing and the following main parts:
7. Detailed Descriptions
1114

Ricoh MP C2504 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Scan Type	Flatbed, ADF
Max Scan Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Max Paper Size	A3
Duplex Printing	Yes
Memory (RAM)	2 GB
Print Speed	25 ppm (A4)
Copy Speed	25 cpm (A4)
Fax Resolution	200 x 200 dpi
Paper Capacity	1200 sheets
Connectivity	USB, Ethernet, Wi-Fi
Dimensions	587 x 685 x 913 mm
Control Panel	9-inch Smart Operation Panel
