Ricoh MP C2504 - PSU (AC Controller Board)

To Next Page

To Previous Page

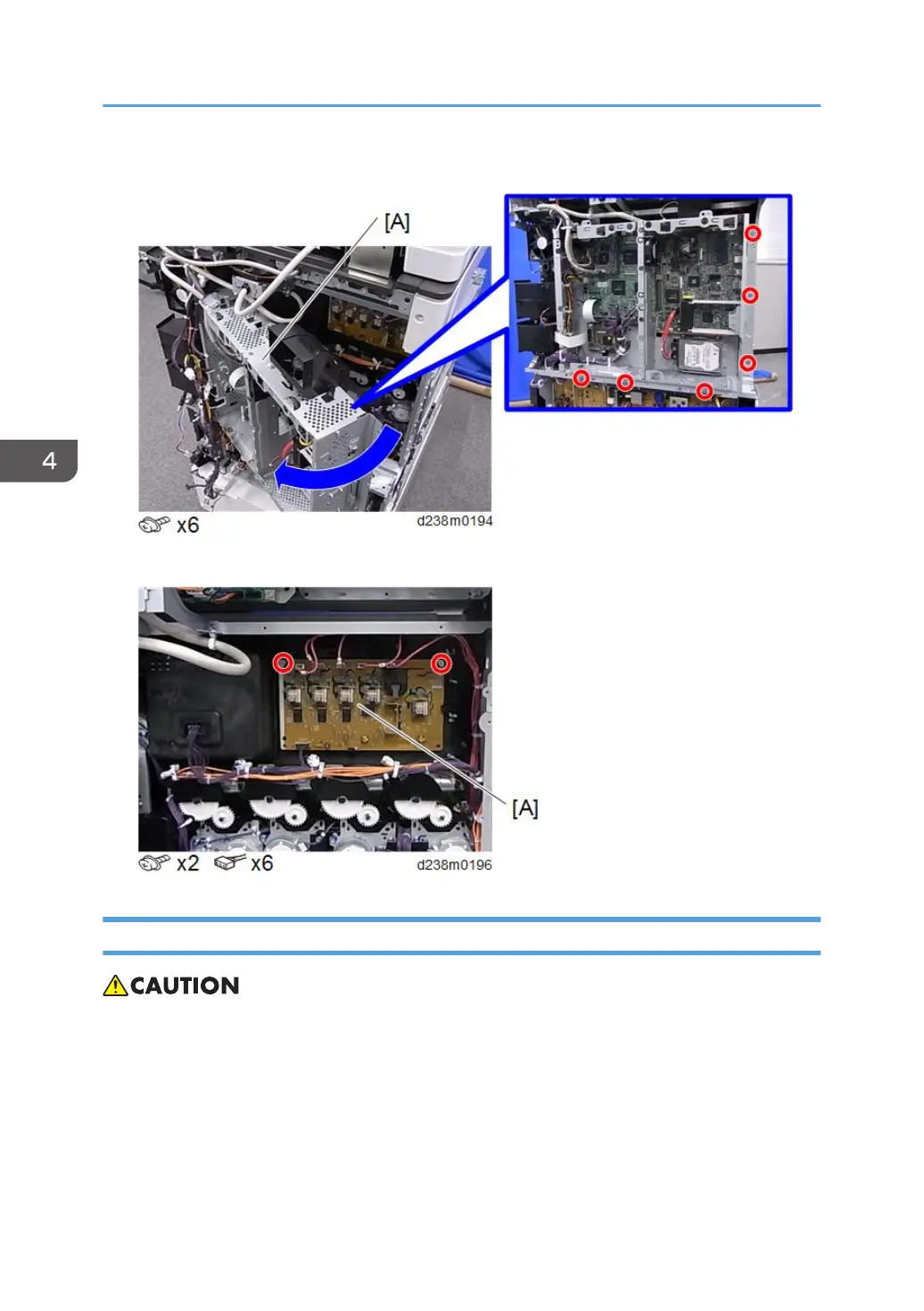

4. Open the controller box [A].

5. HVP_TTS [A]

PSU (AC Controller Board)

• Turn off the main power switch and unplug the power cord before replacing the PSU.

• Do not touch the areas outlined in red in the following diagrams when replacing the PSU. Residual

charge on the board may cause electric shock.

4. Replacement and Adjustment

618
