Ricoh MP C2504 - 1 St Tray Lift Motor; 2 Nd Tray Lift Motor

To Next Page

To Previous Page

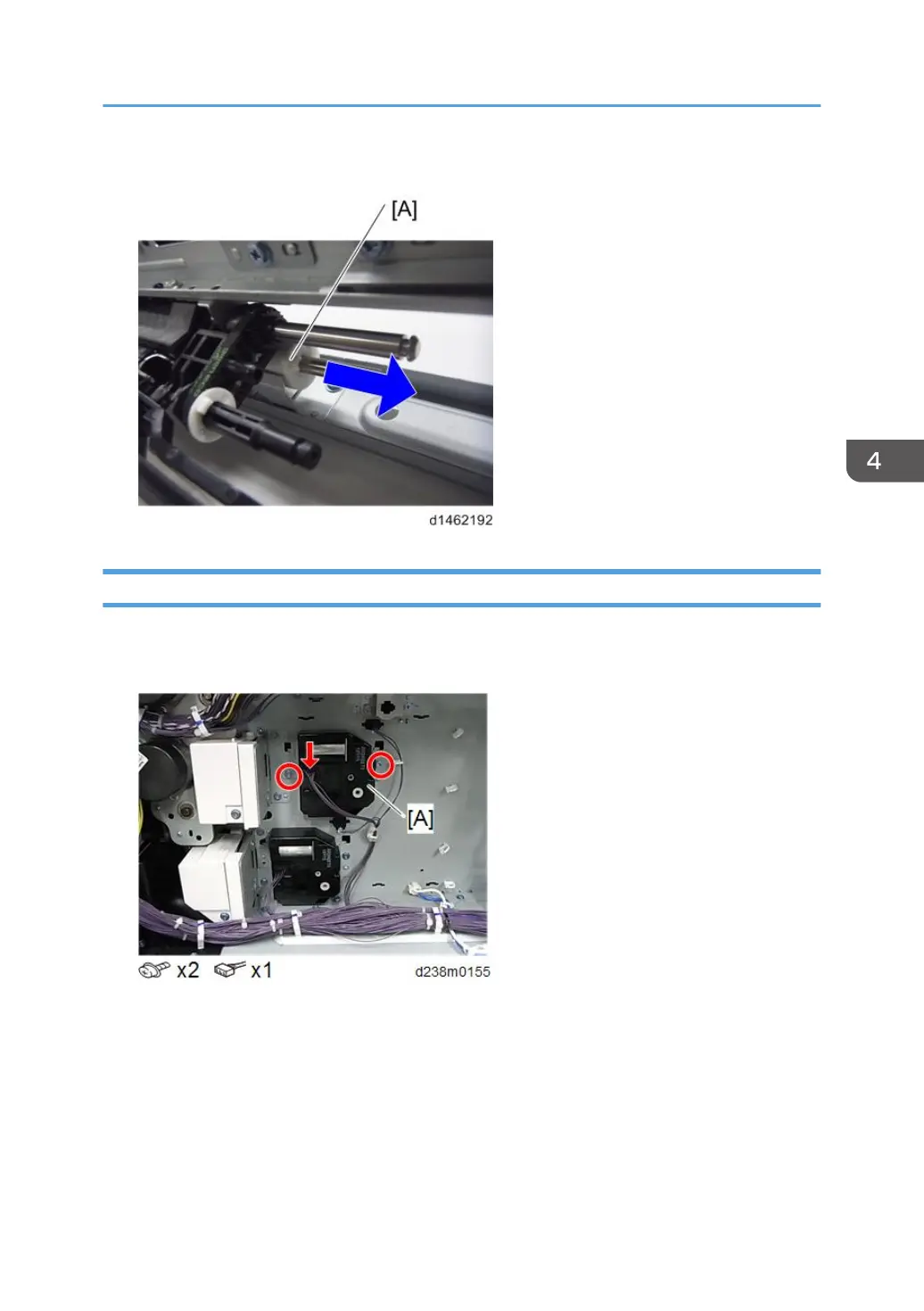

6. Torque Limiter [A]

1st Tray Lift Motor/ 2nd Tray Lift Motor

1. HVP-CB with bracket (page 622)

2. 1st Tray Lift Motor [A]

Paper Feed

571
