Ricoh MP C2504 - Paper Feed Unit

To Next Page

To Previous Page

No. Description No. Description

9 Toner supply motor (Y) 18 Waste toner bottle set sensor

Paper Feed Unit

No. Description No. Description

1 Tray set switch (1st feed tray) 8 Transport sensor (2nd Feed Tray)

2 Lift motor (1st feed tray) 9 Paper end sensor (2nd feed tray)

3 Tray set switch (2nd feed tray) 10 Upper limit sensor (2nd feed tray)

4 Lift motor (2nd feed tray) 11 Transport sensor (1st feed tray)

5 Registration sensor 12 Paper end sensor (1st feed tray)

6 Paper size switch (2nd Feed Tray) 13 Upper limit sensor (1st feed tray)

7 Anti-condensation heater

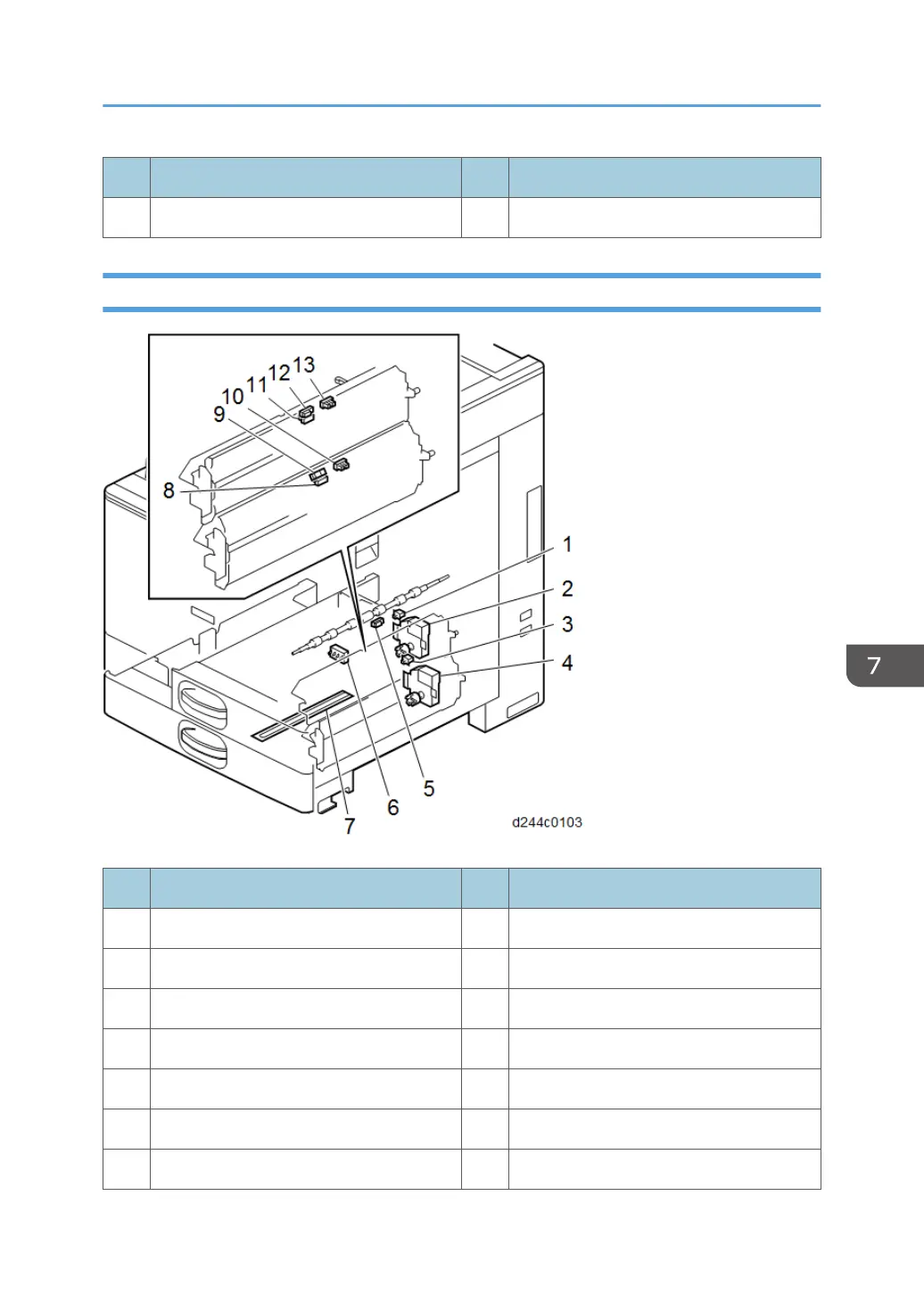

Component Layout
