Paper Feed/ Transport Section

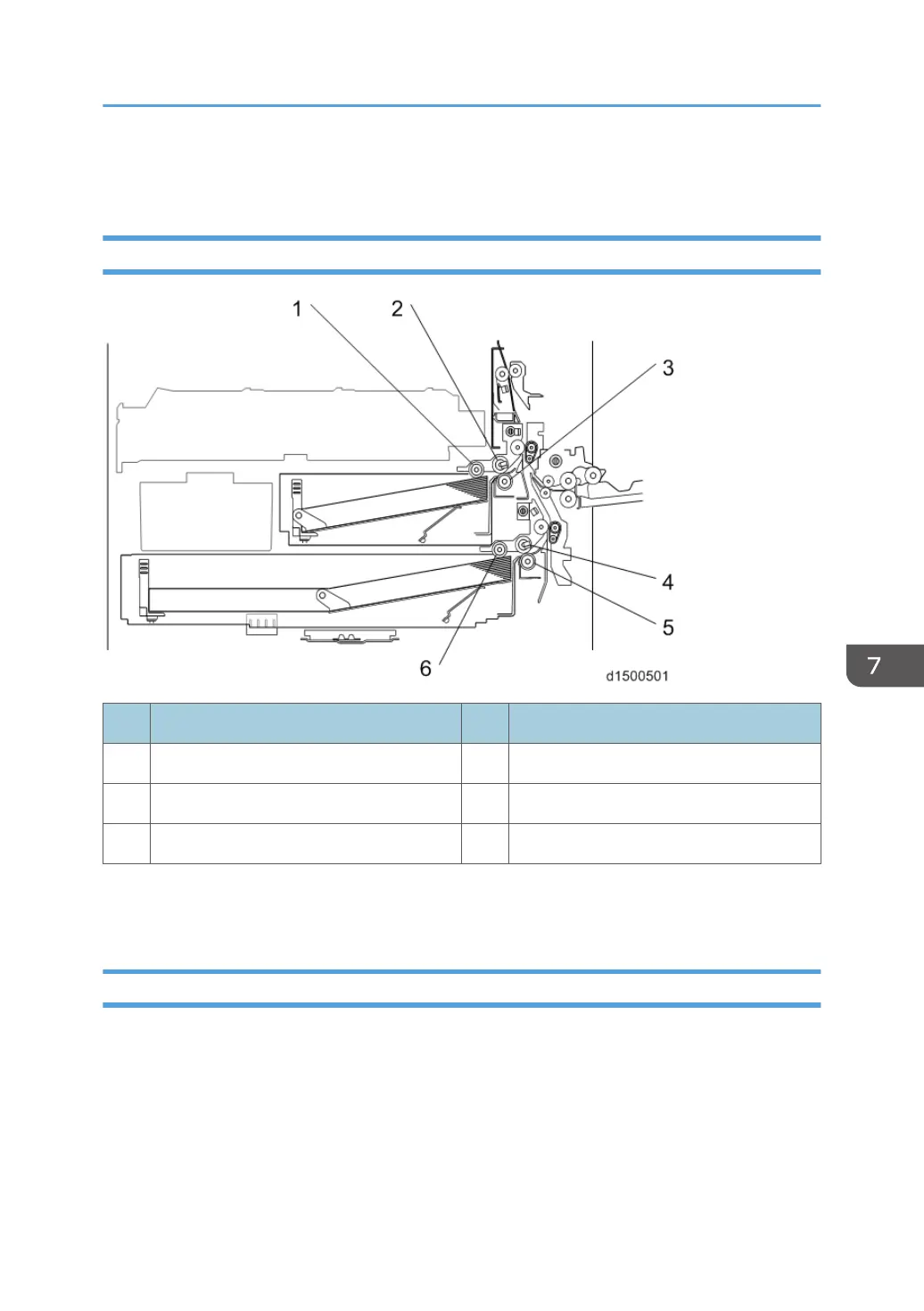

Overview
No. Description No. Description
1 Pick-up roller (1st paper tray) 4 Paper feed roller (2nd paper tray)
2 Paper feed roller (1st paper tray) 5 Friction roller (2nd paper tray)
3 Friction roller (1st paper tray) 6 Pick-up roller (2nd paper tray)
In this machine, an RF paper feed system is employed, and the paper feed roller, friction roller and pick-
up roller are high durability rollers.
Paper Feed/ Transport Part
The paper feed tray consists of 2 units, i.e., a main double tray and a bypass feed tray. By using the 1st
tray as a fixed tray, and the 2nd tray as a universal tray, a space-saving two-step feed is enabled.
