How to set Margin Erase for Stapleless Stapler

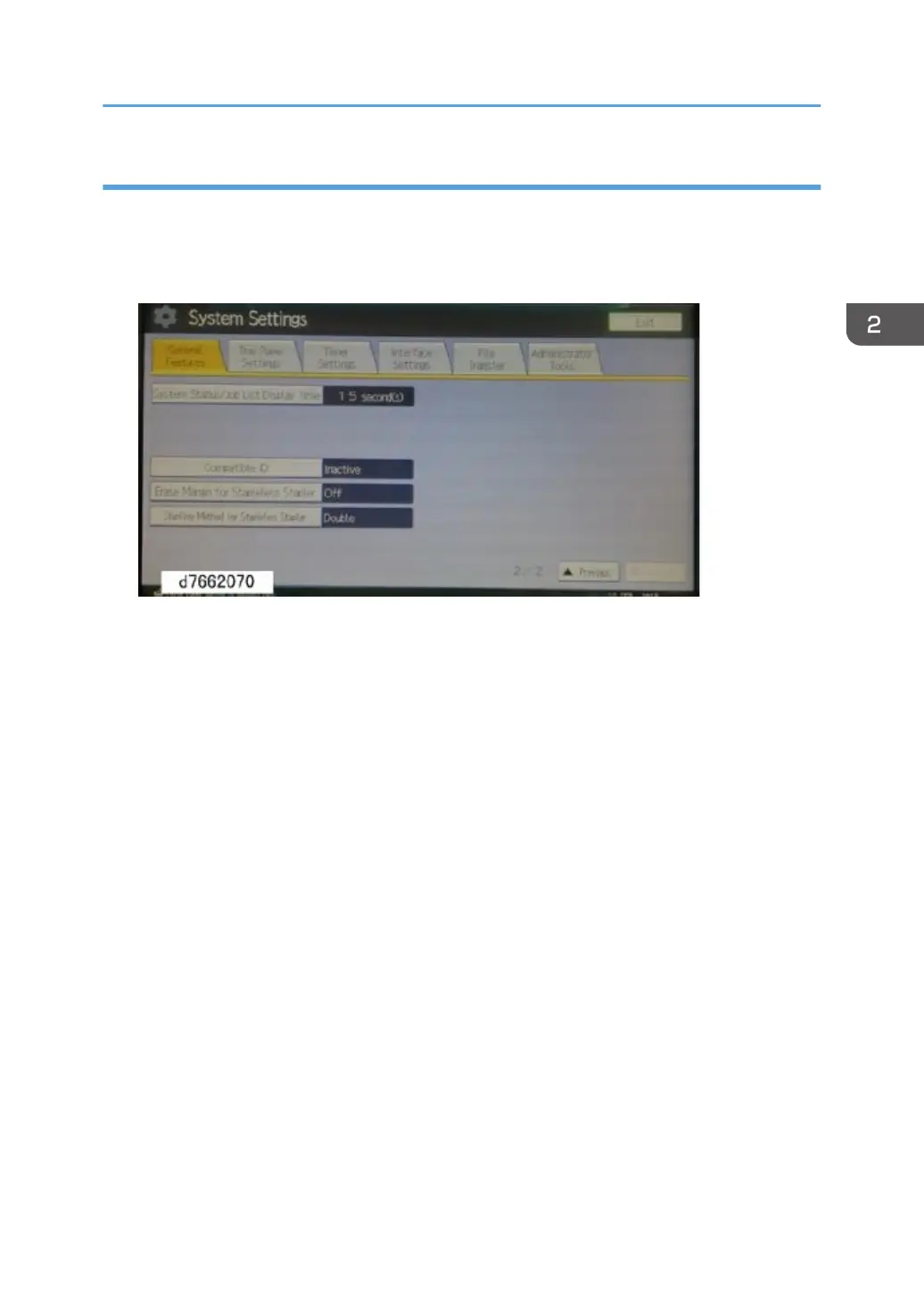

1. Press the [User Tools] icon.

2. Press [Machine Features] > [System Setting] > [General Setting].

3. Press [Erase Margin for Stapleless Stapler].

Internal Finisher SR3180 (D766)

259
