Ricoh MP C2504 - Imaging Drive Unit

To Next Page

To Previous Page

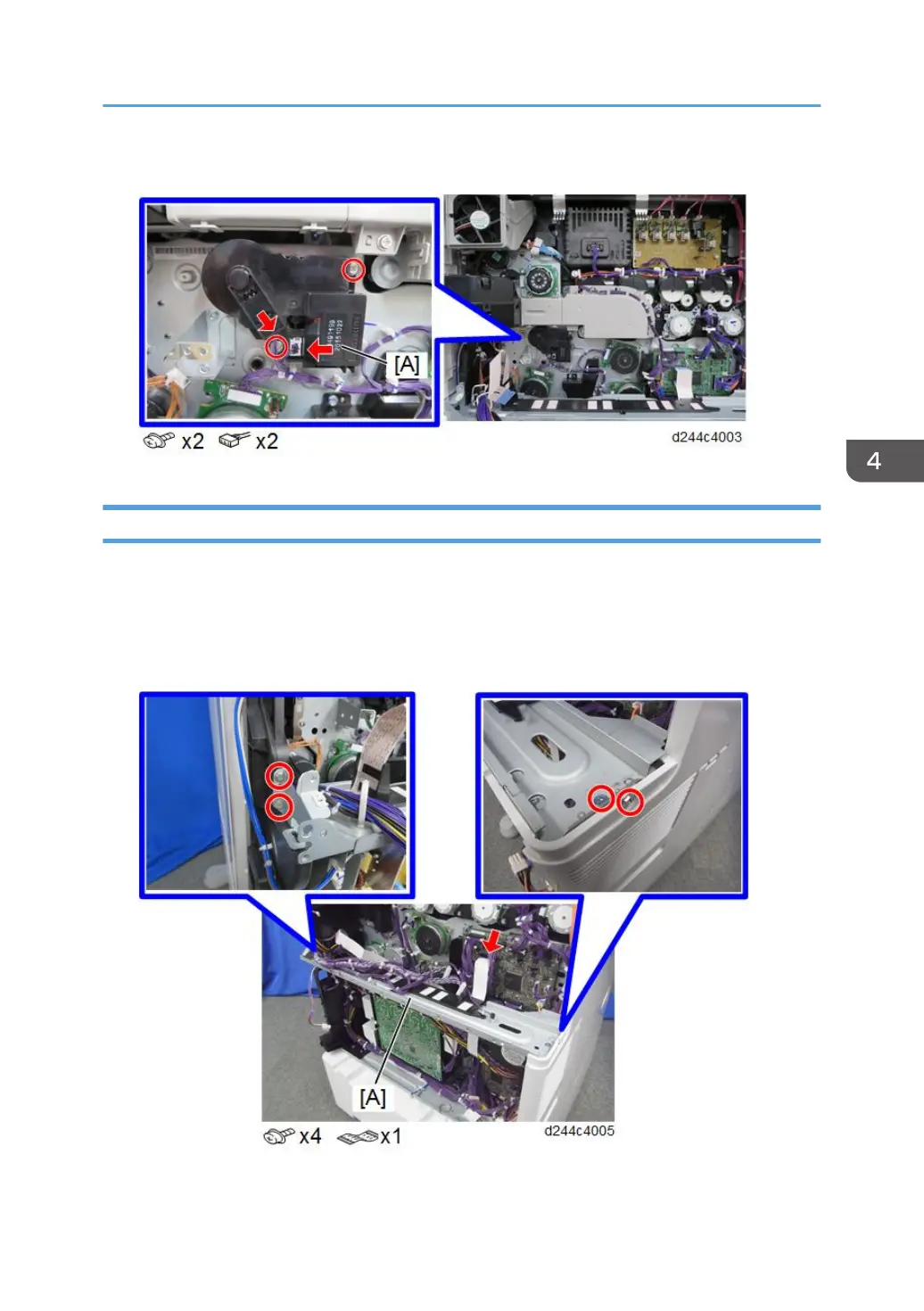

2. Paper transfer contact and release motor unit [A]

Imaging Drive Unit

1. Controller box (page 614)

2. Power supply box (page 620)

3. Right rear cover (page 412)

4. Bracket [A]

5. Toner supply cooling fan unit (page 630)

Drive Unit

513
