Ricoh MP C2504 - Duplex Unit

To Next Page

To Previous Page

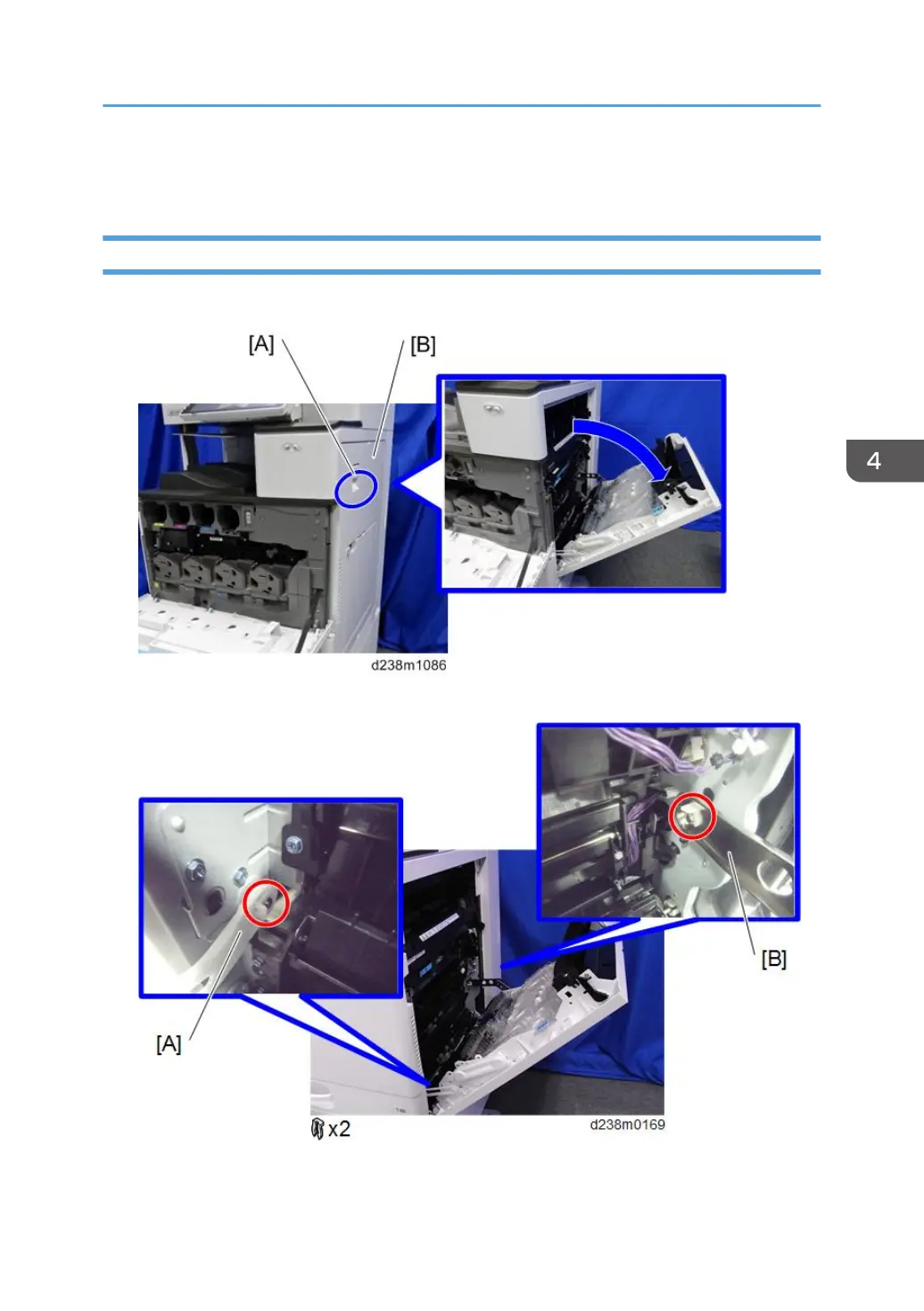

Duplex Unit

1. Unlock the lever [A], and then open the right door [B].

2. Arms [A] [B]

3. Right rear cover (page 412)

Duplex Unit

591
