Ricoh MP C2504 - Air Flow

To Next Page

To Previous Page

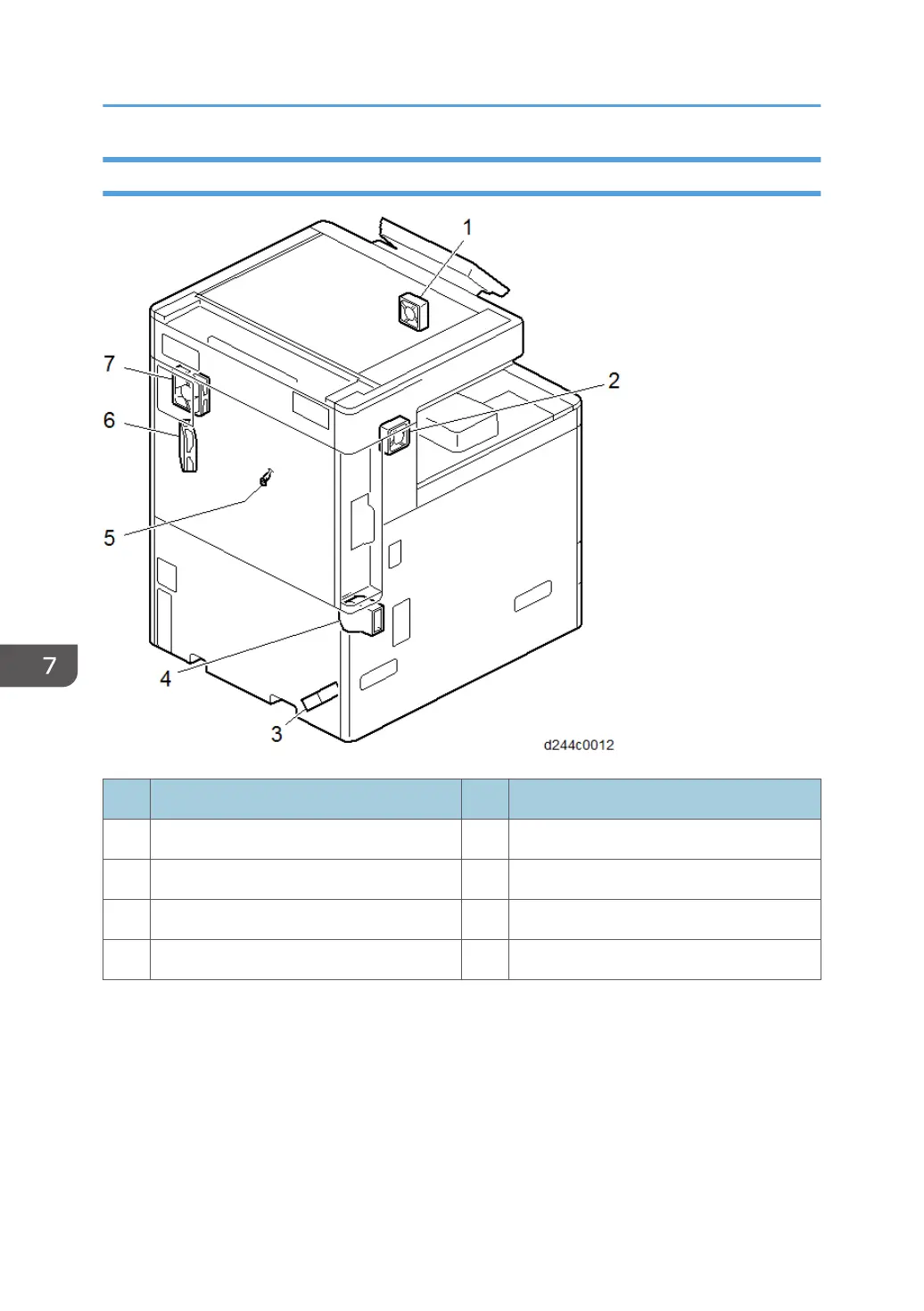

Air Flow

No. Description No. Description

1 Paper exit cooling fan 5 Imaging temperature sensor (Thermistor)

2 Development intake fan 6 Toner supply cooling fan

3 PSU cooling fan 7 Fusing exhaust fan

4 Ozone exhaust fan
