Ricoh MP C2504 - Fusing Exhaust Fan

To Next Page

To Previous Page

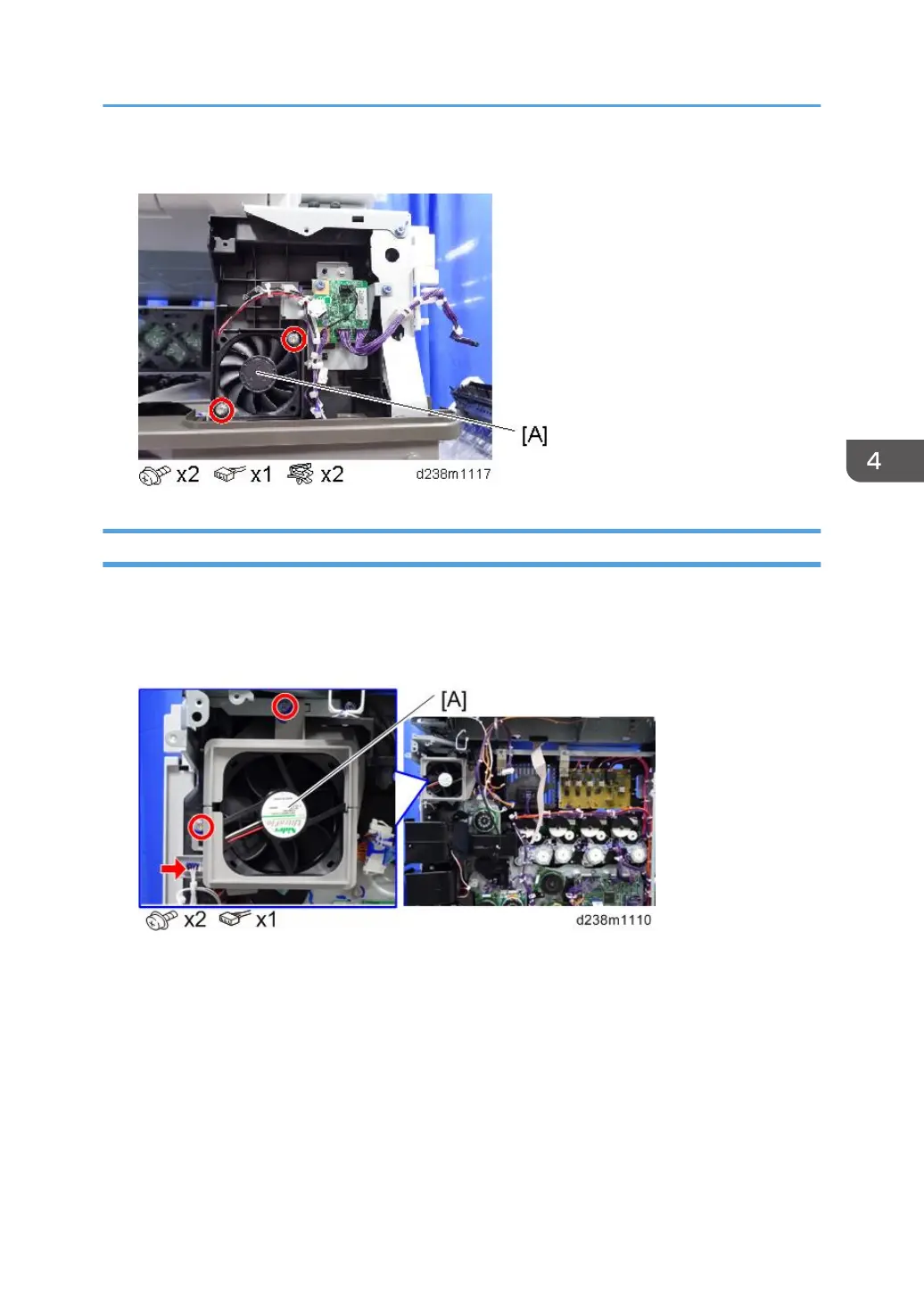

2. Paper exit cooling fan [A]

Fusing Exhaust Fan

1. Rear cover (page 411)

2. Right rear cover (page 412)

3. Fusing exhaust fan unit [A]

Fans/Filters

629
