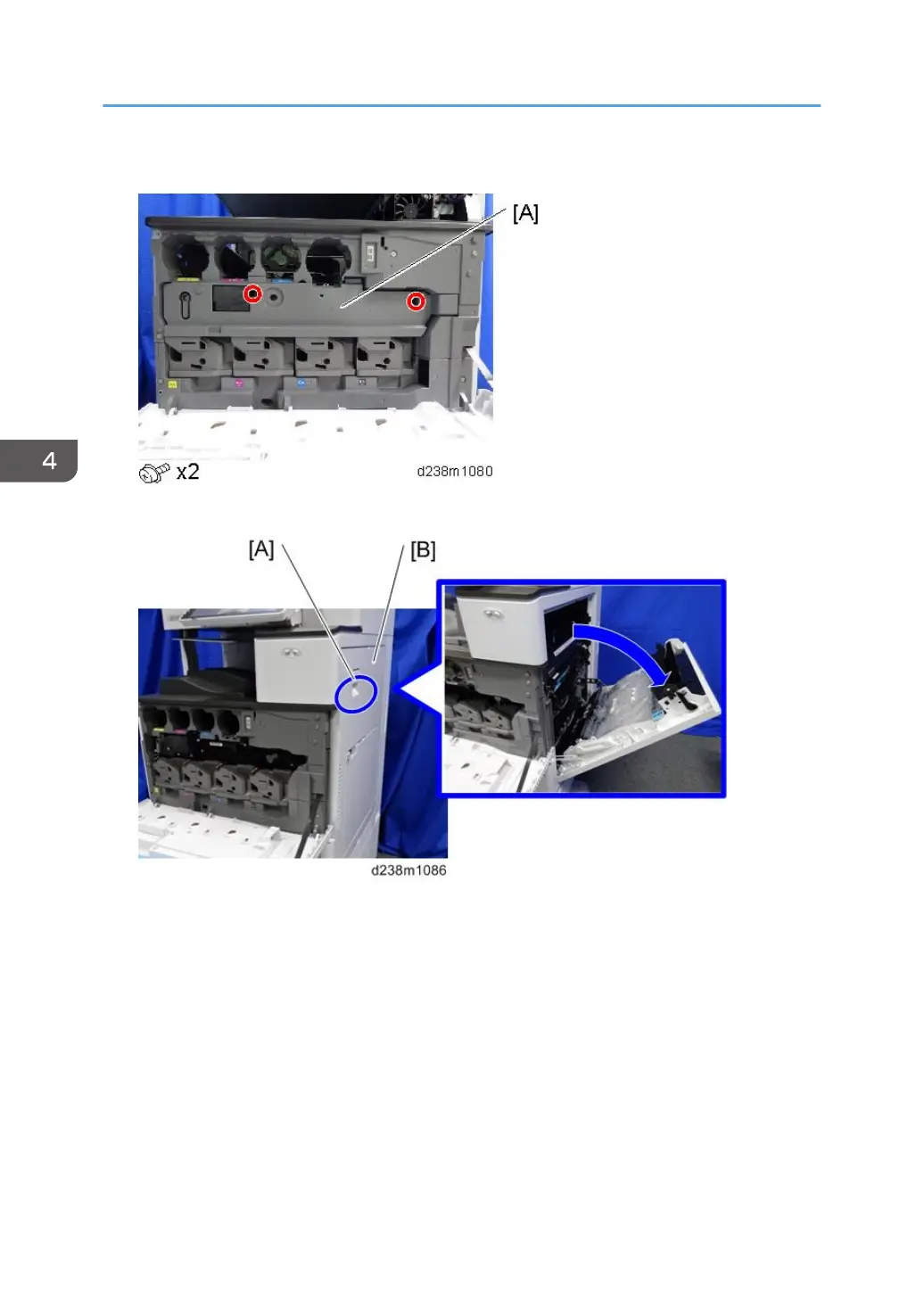

2. Image transfer front cover [A]

3. Release the lock [A] and open the right door [B].

4. Replacement and Adjustment
