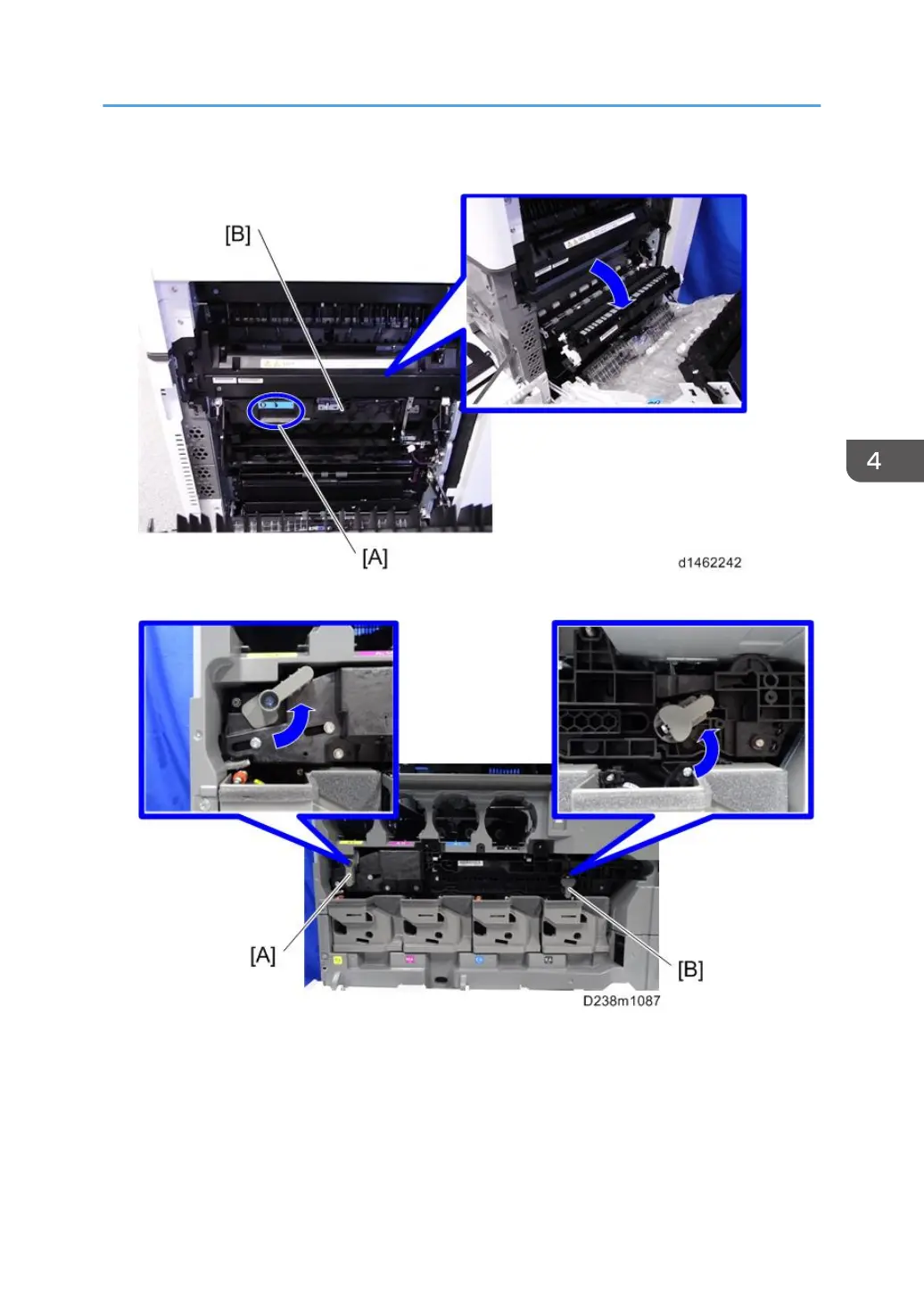

4. Pull the handle [A] and open the paper transfer unit [B].

5. Release the ITB lock lever [A] and ITB contact lever [B].

6. Pull out the image transfer belt unit fully [A].

Image Transfer Unit

477
