Ricoh MP C2504 - Page 502

• The paper transfer roller unit does not open

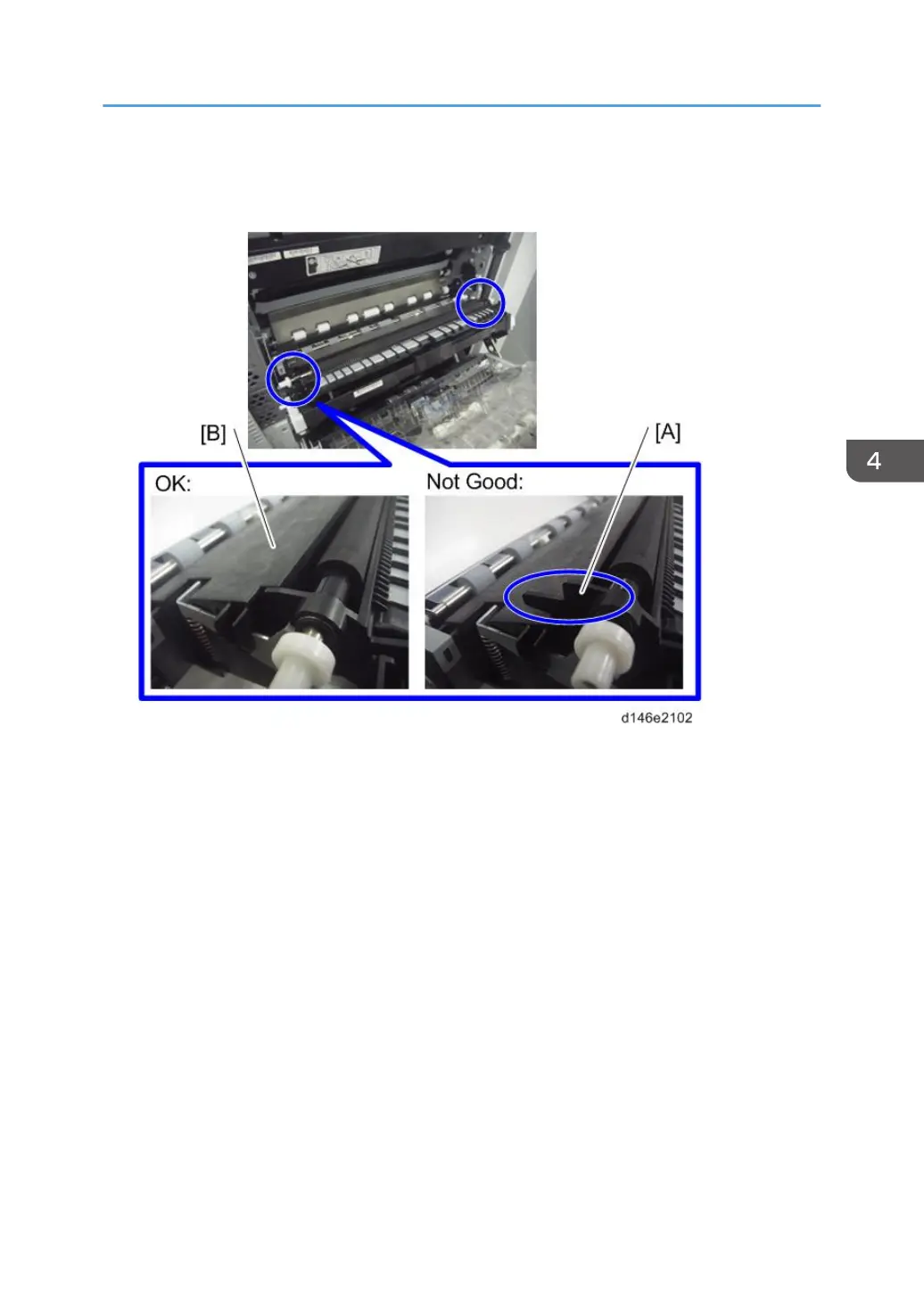

1. Check that the claw [A] on the roller holder is under the guide plate [B].
2. Check that the pin [A] on either end of the paper transfer roller is inserted correctly.
Image Transfer Unit
493
