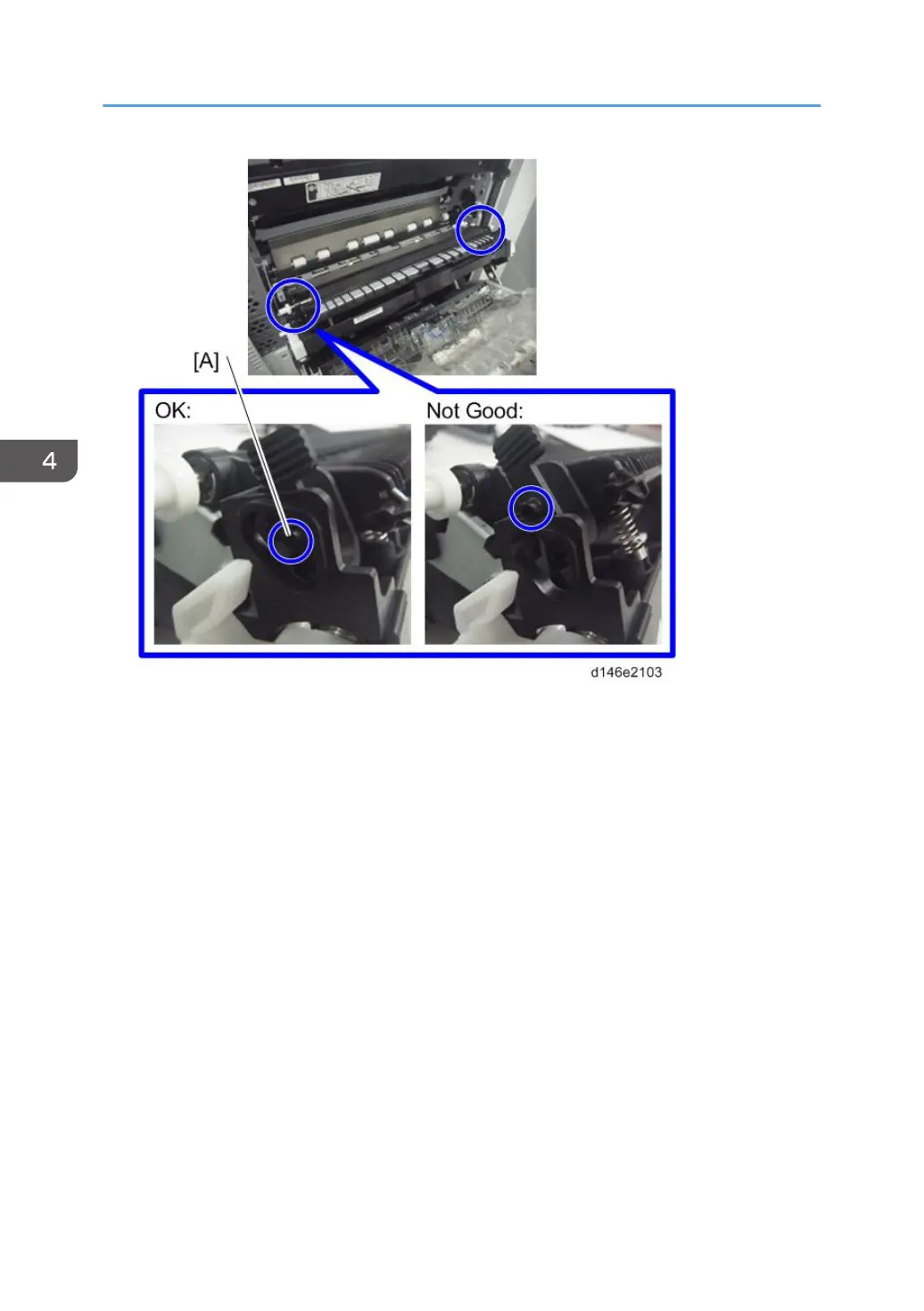

3. Check that the spring [A] at either end of the paper transfer roller unit is in the correct position at

each end.

4. Replacement and Adjustment

494
