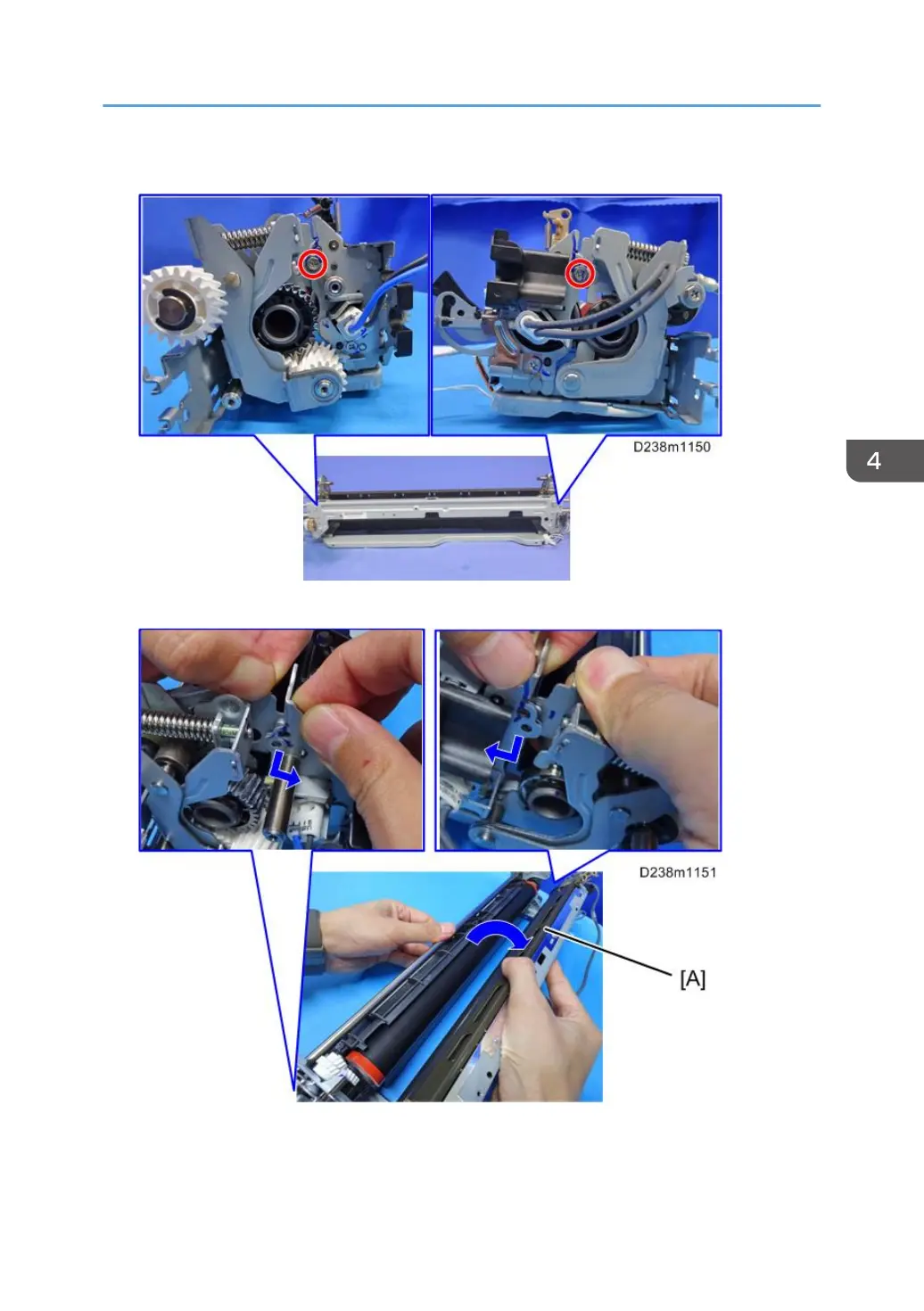

7. Two screws.

8. Release the boss caps on both sides, and then detach the fusing sleeve belt unit [A].

Fusing Unit

549
