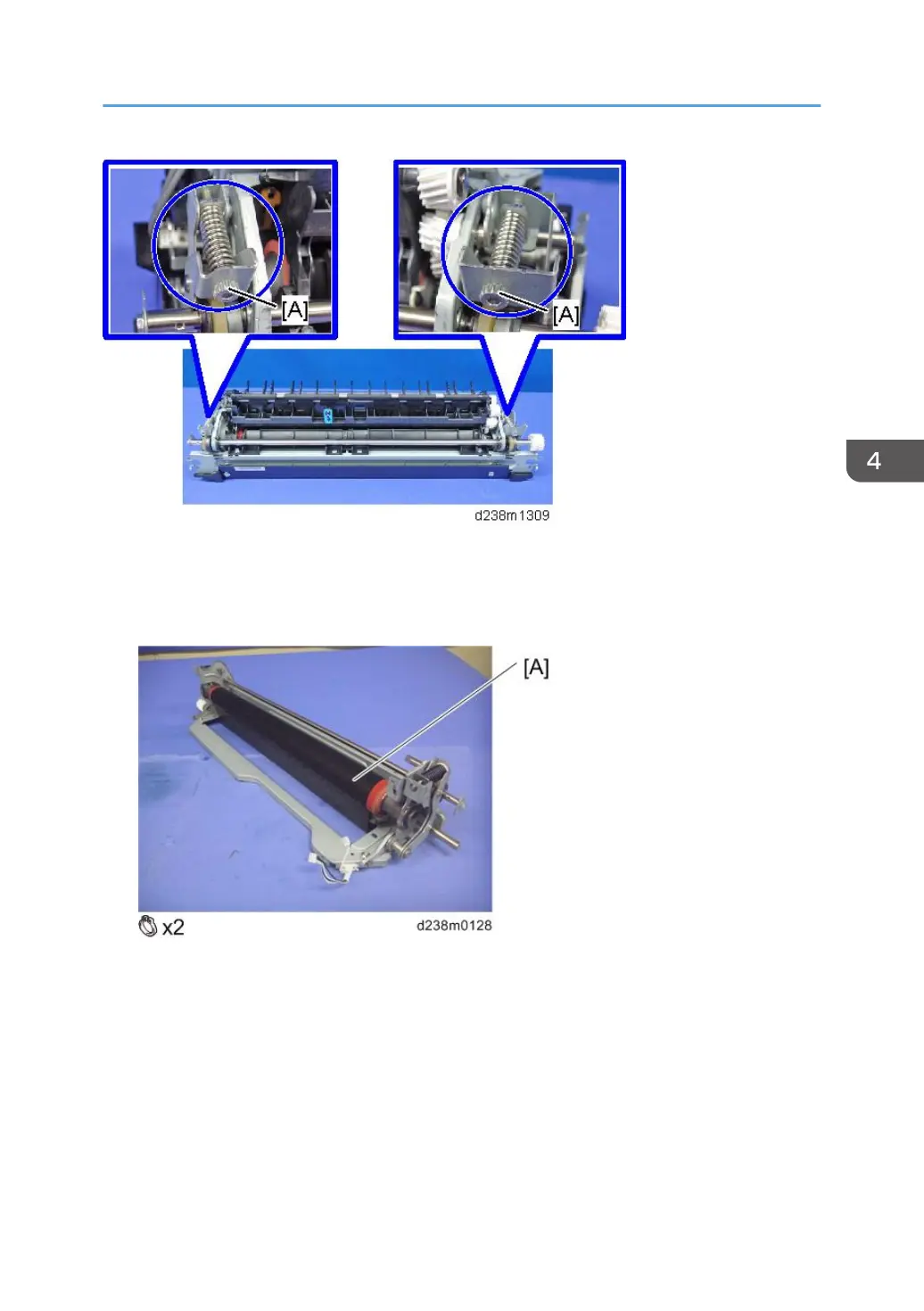

• Do not move the pressure roller to another fusing unit.

1. Fusing sleeve belt unit (page 546)

2. Pressure roller [A]

Fusing Unit
