Ricoh MP C2504 - Page 532

To Next Page

To Previous Page

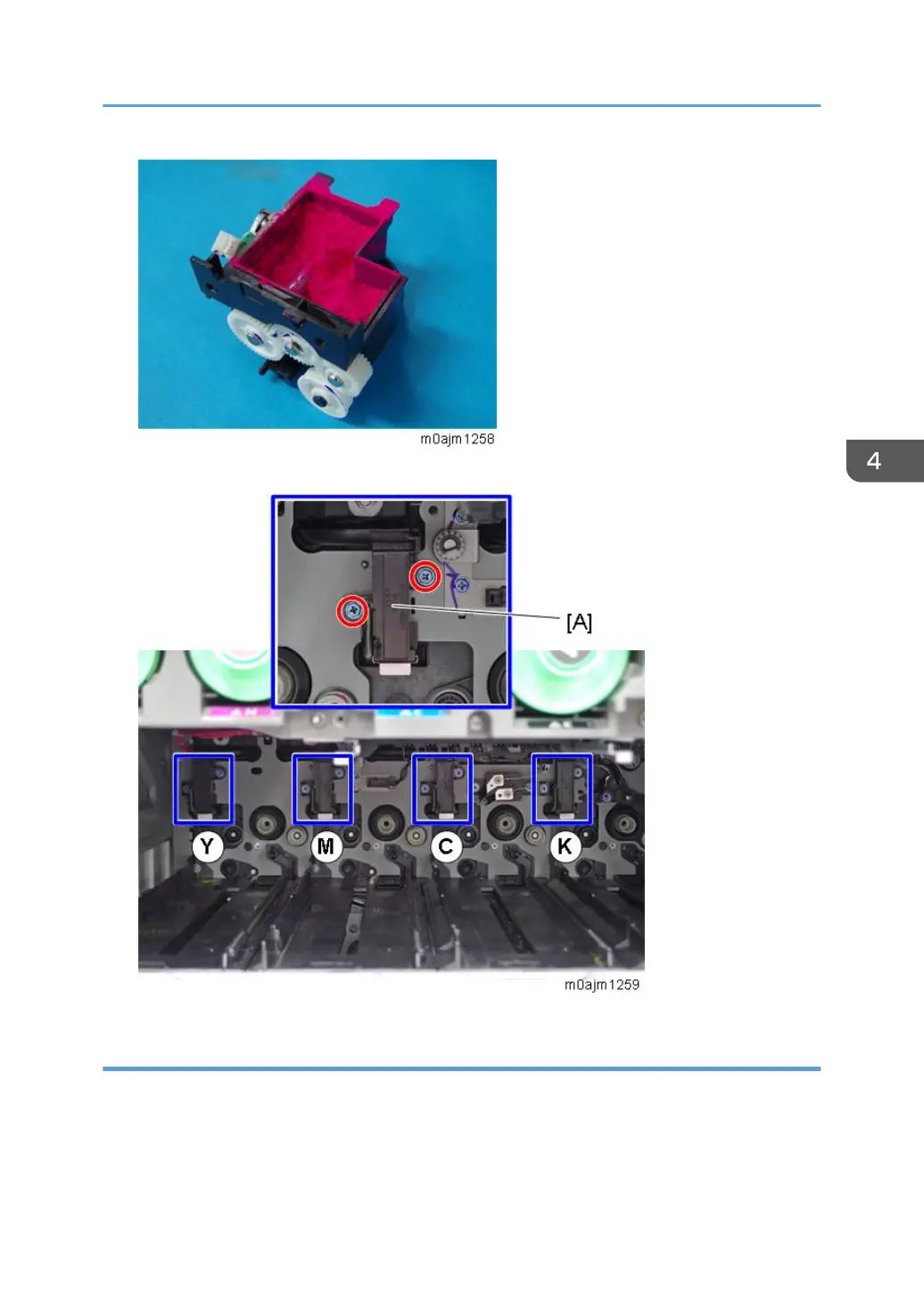

• When replacing the sub hopper because of clogged toner, replace the toner duct[A], too.

1. Pull out the image transfer belt unit about 5cm.

2. Controller box (page 614)

3. Toner supply cooling fan unit (page 630)

Drive Unit

523
