Ricoh MP C2504 User Manual

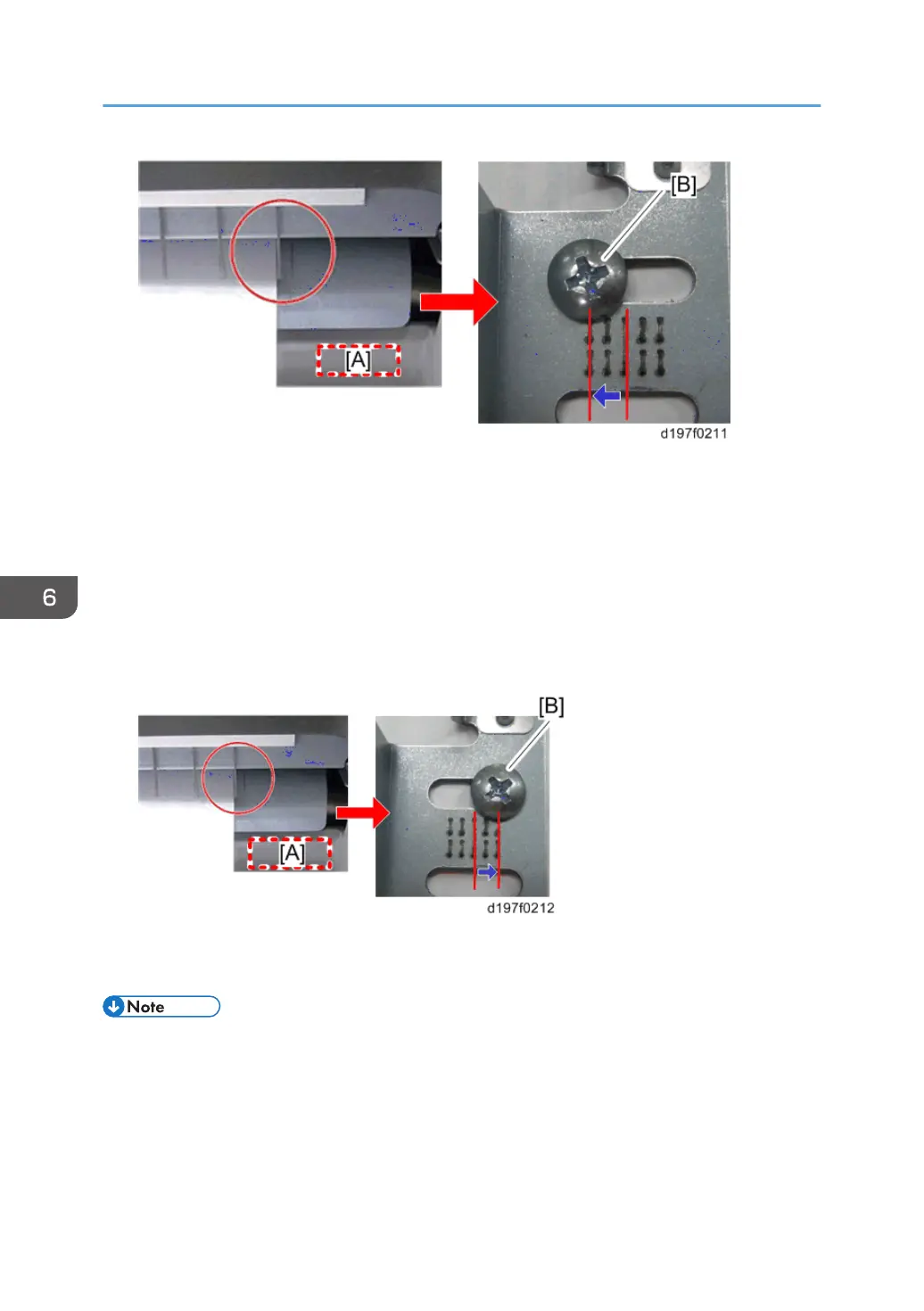

[A]: Proof Tray
[B]: Docking Bracket Screw
If the paper shifts towards the rear
Slide the docking bracket towards the rear by the amount of shift, to move the finisher in the same
direction.
e.g.: When the paper has shifted by 2 mm towards the rear from the center mark (2 mm/division of
the scale), move the docking bracket towards the rear by 2 mm (2 divisions). The divisions move
towards the front.
[A]: Proof Tray
[B]: Docking Bracket Screw
• After the adjustment, check the side-to-side registration by feeding paper out to the proof tray. If the
shift has not been solved, adjust the docking bracket (screw for the docking bracket) slightly again.
6. Troubleshooting
1046

Ricoh MP C2504 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Scan Type	Flatbed, ADF
Max Scan Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Max Paper Size	A3
Duplex Printing	Yes
Memory (RAM)	2 GB
Print Speed	25 ppm (A4)
Copy Speed	25 cpm (A4)
Fax Resolution	200 x 200 dpi
Paper Capacity	1200 sheets
Connectivity	USB, Ethernet, Wi-Fi
Dimensions	587 x 685 x 913 mm
Control Panel	9-inch Smart Operation Panel
