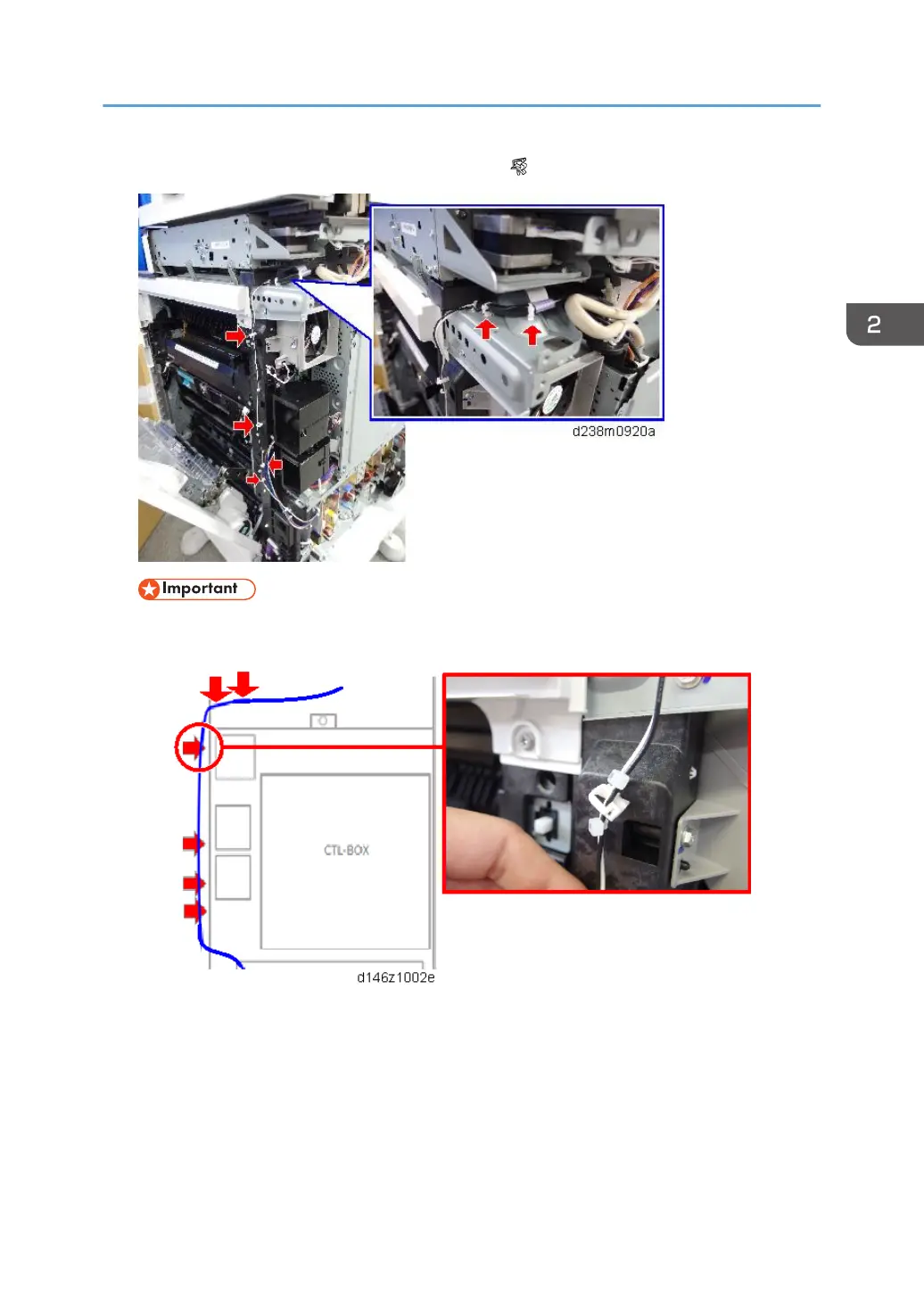

14. Route the harness in the direction of the scanner ( x 6).

• Fasten the clamp between the bindings of the harness at the location indicated by the red

circle.

15. Attach the connector to the frame.

Connect it to the heater harness in step 25.

Anti-Condensation Heater (Scanner, PCDU)

103
