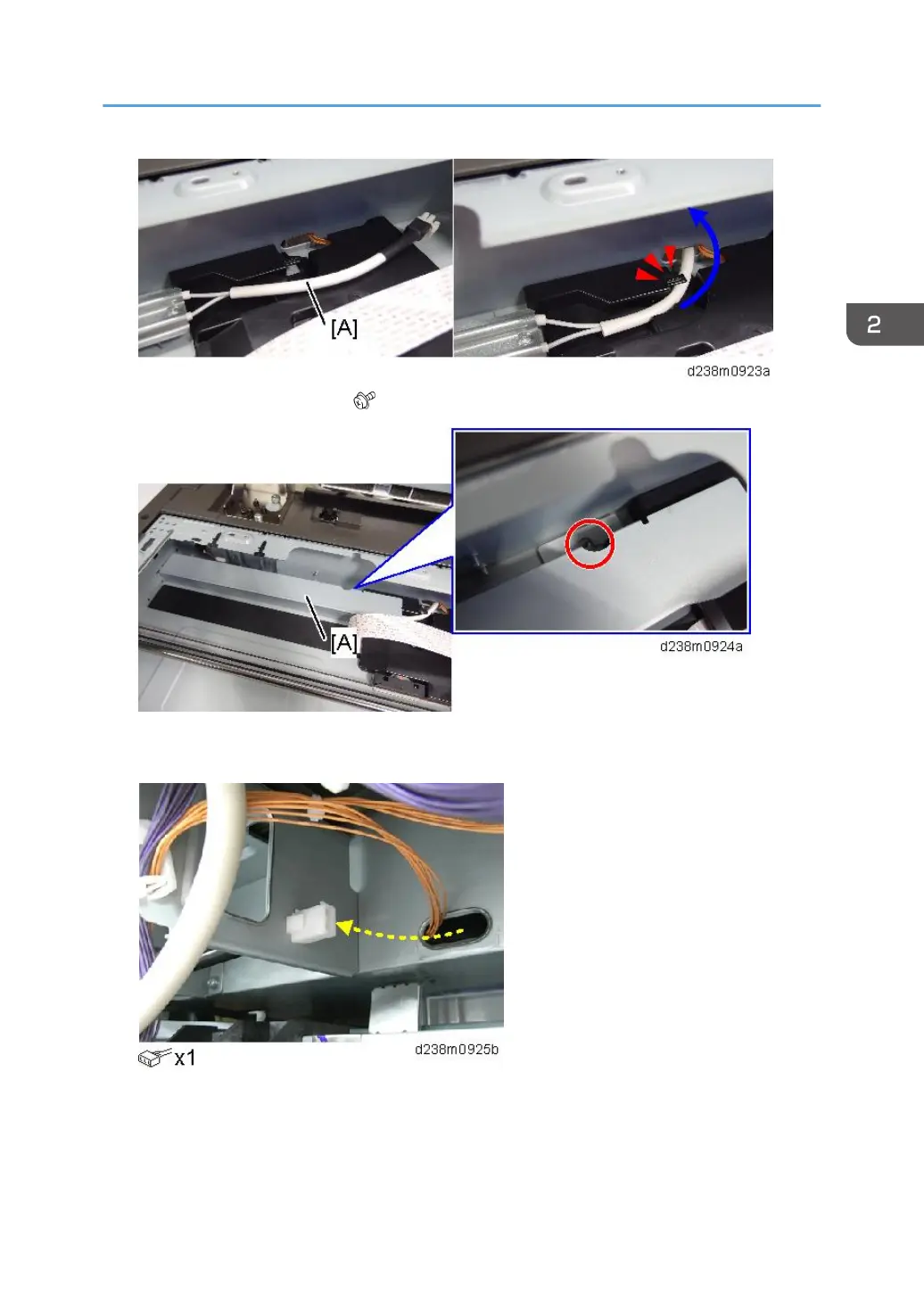

24. Attach the heater cover [A] ( × 1).

25. Connect the heater harness that was pulled out of the frame hole to the connector which

was mounted in step 15.

26. Reattach all the removed covers.
