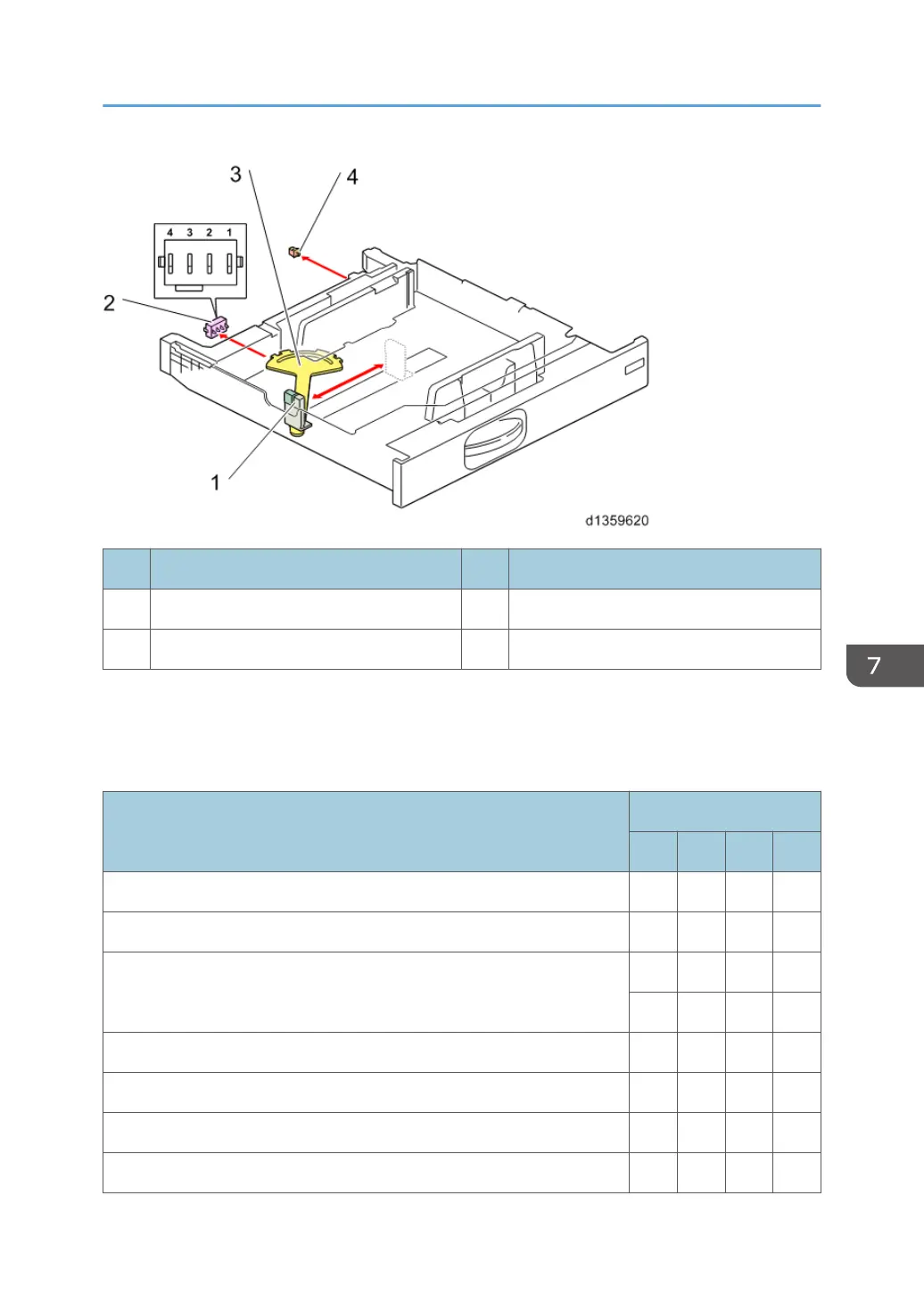

No. Description No. Description
1 End fence 3 Size detection actuator
2 Paper size switch 4 Tray set switch
2nd tray detection sizes:
SRA3, A3, B4, A4 SEF, LT SEF, B5 SEF, A4 LEF, B5 LEF, and A5 LEF
2nd tray size detection patterns:
Size
Knob
4 3 2 1
SRA3(12"×18") 1 0 1 0
A3(DLT) 0 1 0 0
B4(LG)
0 0 1 1
0 1 1 1
A4 portrait 1 1 1 0
LT portrait 1 1 0 0
B5 portrait 1 0 0 0
A4 landscape(LT landscape) 0 0 0 1
Paper Feed/ Transport Section
1165
