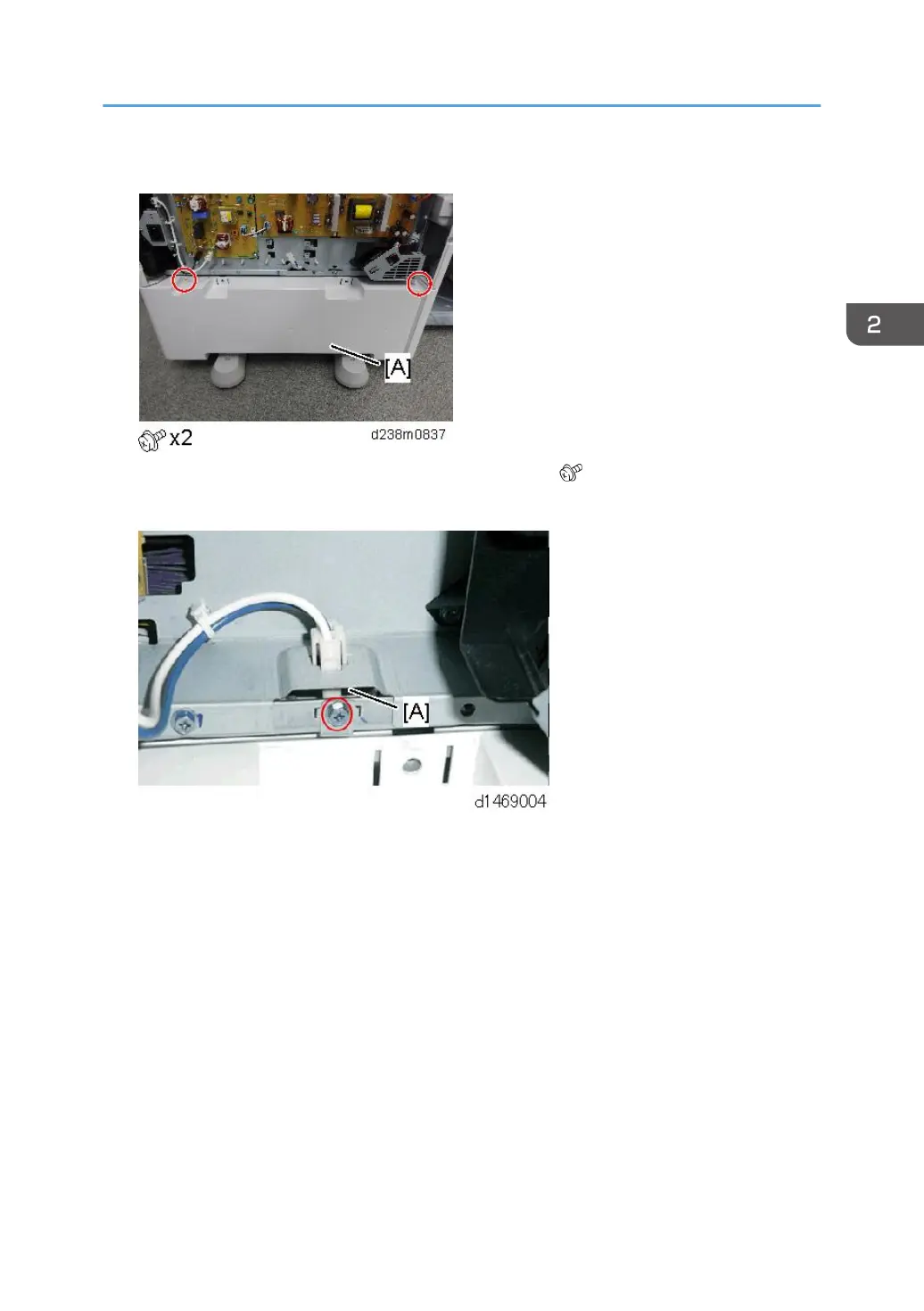

5. Remove the rear cover [A] of the optional paper feed unit.

6. Remove the bracket [A] on the bottom of the main unit ( x1).

The removed bracket can be discarded.

Anti-Condensation Heater for Paper Feed Trays

125
