Ricoh MP C2504 User Manual

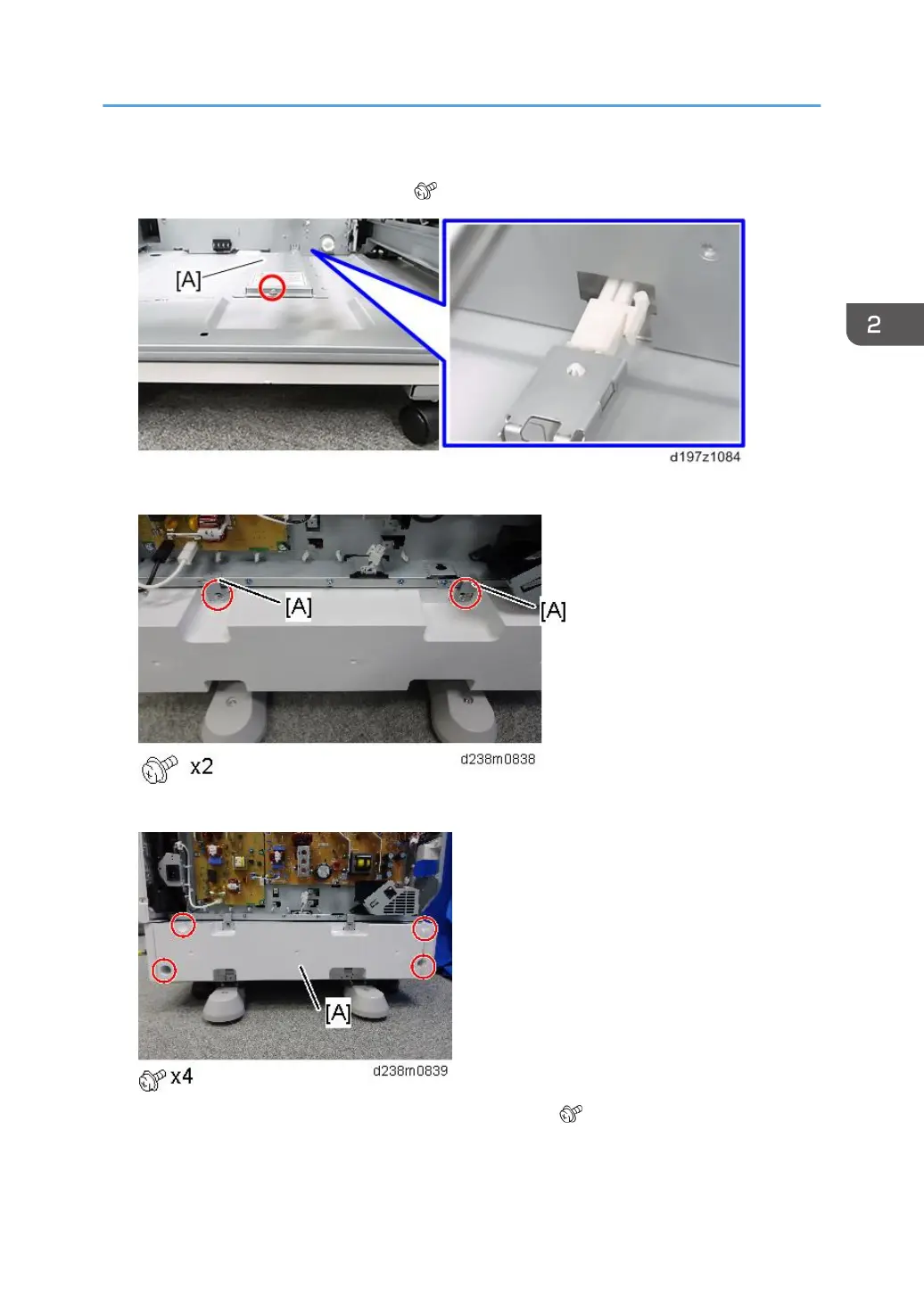

3. Put the harness of the heater [A] for the optional paper feed unit through the hole at the
inner rear frame, and then attach it ( x1).
4. Remove the securing brackets [A] of Paper Feed Unit PB3150.
5. Remove the rear cover [A] of Paper Feed Unit PB3150.
6. Remove the bracket [A] on the bottom of the main unit ( x1).
The removed bracket can be discarded.
Anti-Condensation Heater for Paper Feed Trays
127

Ricoh MP C2504 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Scan Type	Flatbed, ADF
Max Scan Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Max Paper Size	A3
Duplex Printing	Yes
Memory (RAM)	2 GB
Print Speed	25 ppm (A4)
Copy Speed	25 cpm (A4)
Fax Resolution	200 x 200 dpi
Paper Capacity	1200 sheets
Connectivity	USB, Ethernet, Wi-Fi
Dimensions	587 x 685 x 913 mm
Control Panel	9-inch Smart Operation Panel
