Ricoh MP C2504 User Manual

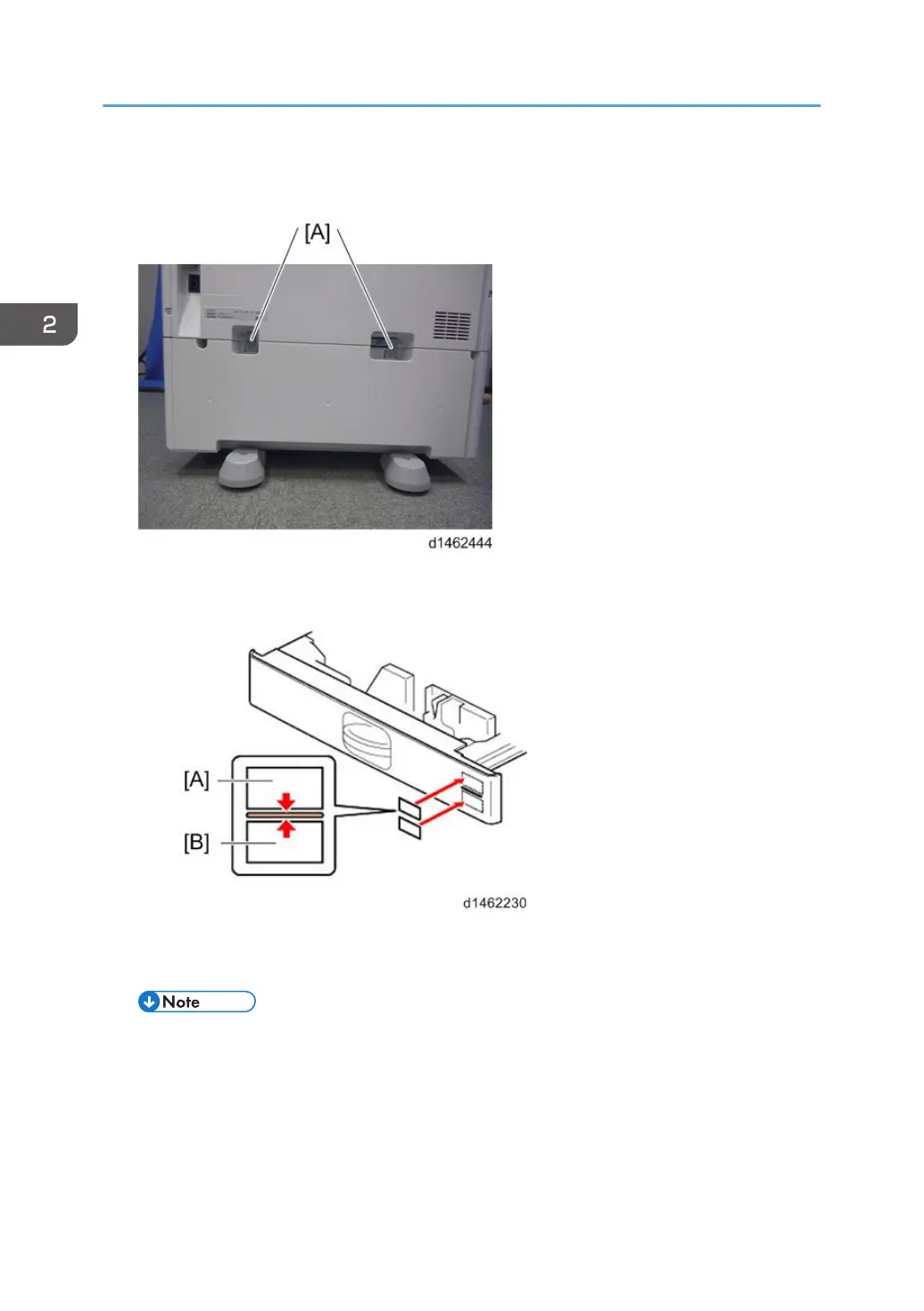

6. Attach the securing brackets [A] to two positions on the left and right at the rear of the
machine (screws: 1 each).
7. Reattach the paper feed tray to the machine
8. Attach the decals as shown below.
[A]: Tray number decal
[B]: Paper size decal
• The tray number decal and paper size decal are packaged together with the machine.
2. Installation
132

Ricoh MP C2504 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Resolution	1200 x 1200 dpi
Scan Type	Flatbed, ADF
Max Scan Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Max Paper Size	A3
Duplex Printing	Yes
Memory (RAM)	2 GB
Print Speed	25 ppm (A4)
Copy Speed	25 cpm (A4)
Fax Resolution	200 x 200 dpi
Paper Capacity	1200 sheets
Connectivity	USB, Ethernet, Wi-Fi
Dimensions	587 x 685 x 913 mm
Control Panel	9-inch Smart Operation Panel
