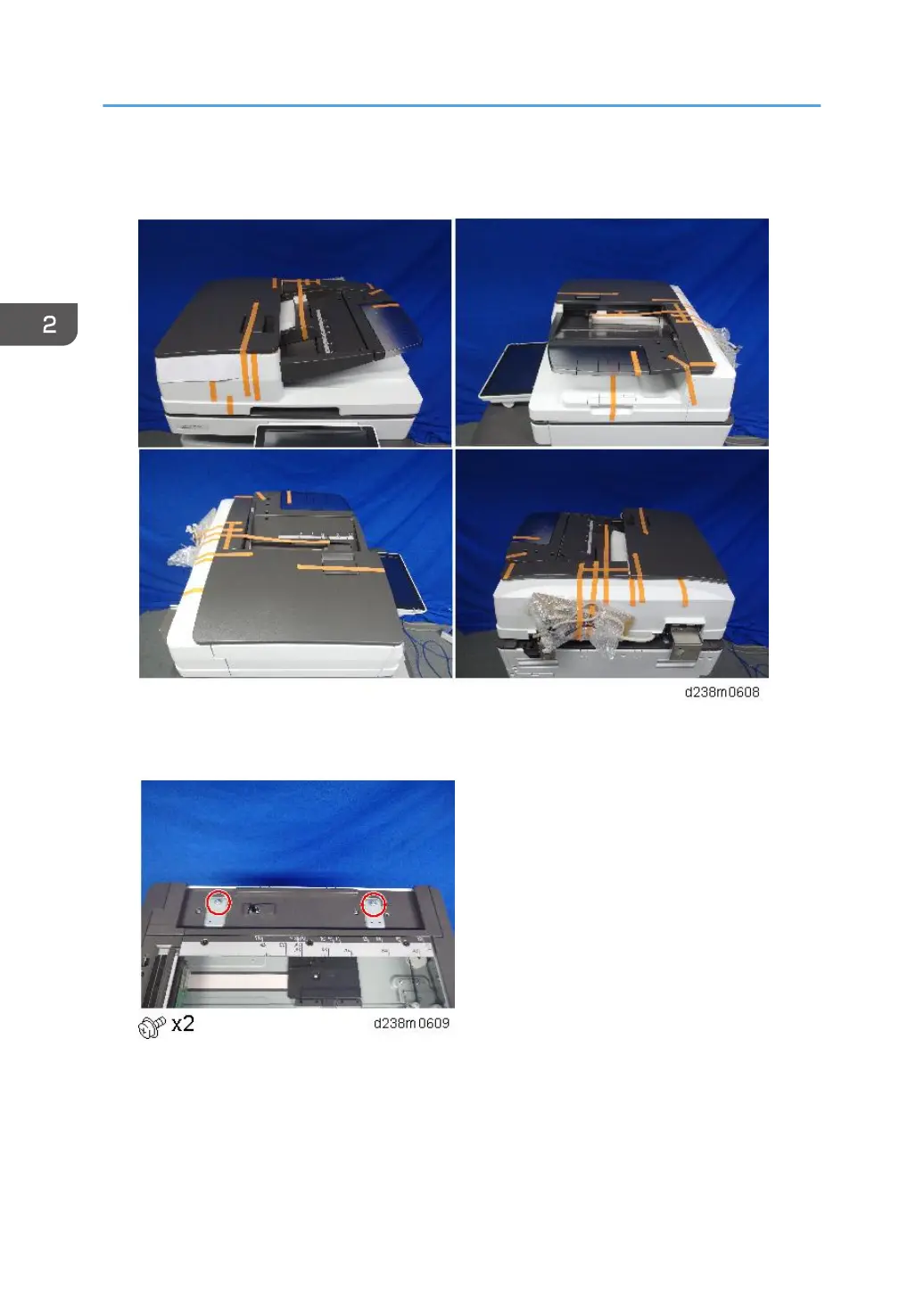

2. Place the unit on the machine temporarily, and remove the orange tapes and shipping

retainers.

3. Remove the accessories in the package (boards, fixing screws, etc.).

4. Attach the 2 stepped screws to the machine.

2. Installation

154
