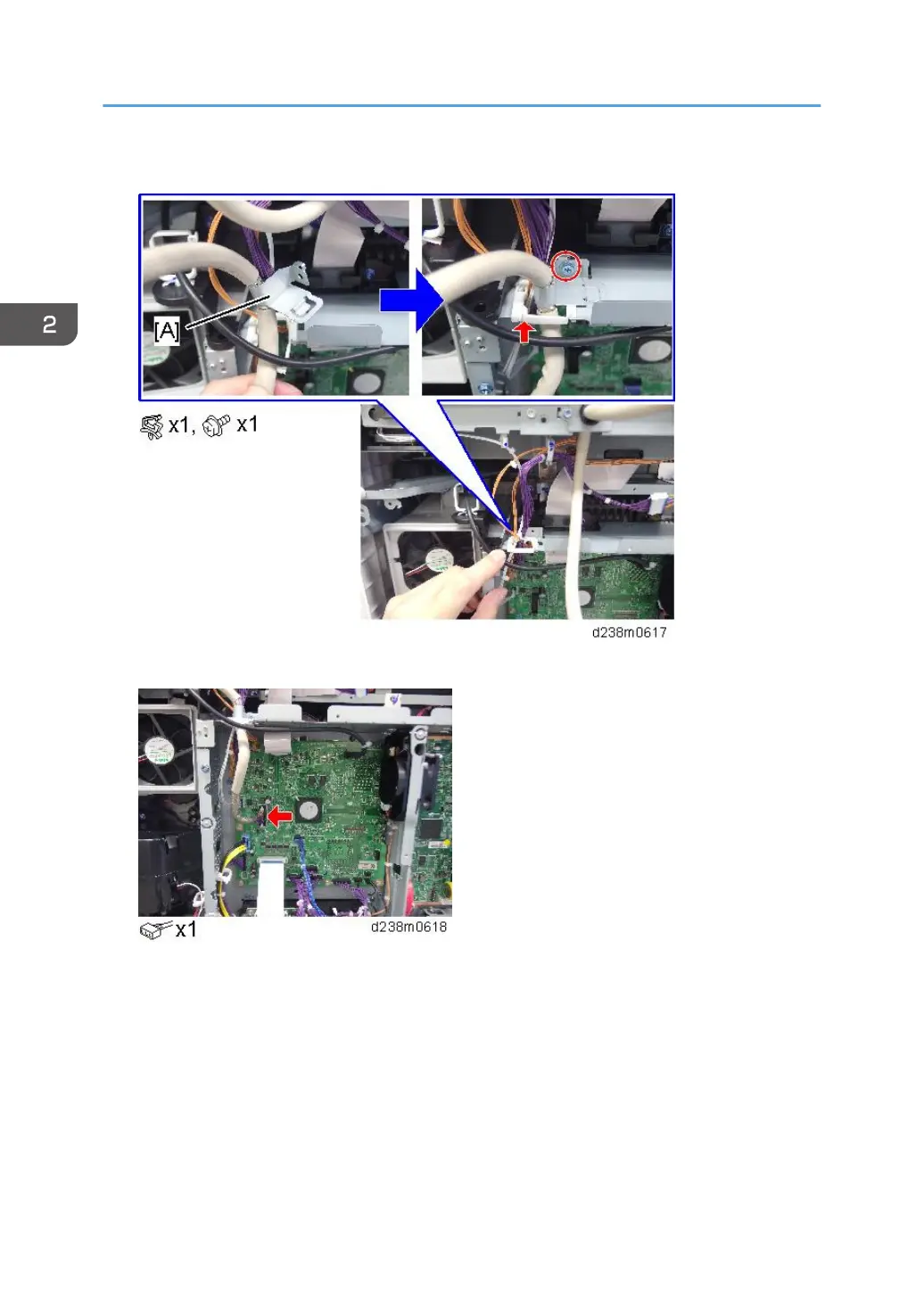

16. Attach the scanner cable [A] with the bracket on the upper frame of the controller box.

17. Connect the cable to the IPU (CN564).
